DIN 19523 Figure 1 Ceramic Nozzle For Determination Of Jetting Resistance Of Components Of Drains and Sewers
  • name
  • name
  • name

DIN 19523 Figure 1 Ceramic Nozzle For Determination Of Jetting Resistance Of Components Of Drains and Sewers

MOQ: 1
Price: To be quoted
Standard Packaging: safety carton pack or plywood box
Delivery Period: 7 working days
Payment Method: T/T
Supply Capacity: 200 pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
china
Brand Name
kingpo
Certification
iso9001 ce
Model Number
DIN 19523:2008 -Figure 1
Material:
Ceramic + Stainless Steel
Ceramic Inner Diameter:
2.5mm
Max Pressure:
35Mpa
Water Flow:
35.7L/min
Highlight:

rain test equipment

,

salt spray test chamber

Product Description

Requirements and test methods for determination of the jetting resistance of components of drains and sewers

  Ceramic Nozzle-DIN 19523:2008 Figure 1

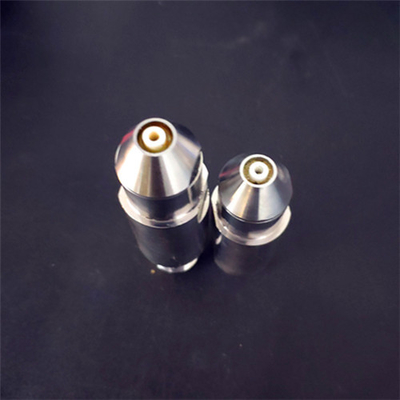

DIN 19523 Figure 1 Ceramic Nozzle For Determination Of Jetting Resistance Of Components Of Drains and Sewers 0



DIN 19523:2008
Pressure: 15 Mpa
Flow 35.7 L/min
Gauge 10[-2,0]mm
Angle 30±1°
Speed 0.2m±0.02m/min
Nozzle diameter φ2.5±0.02mm

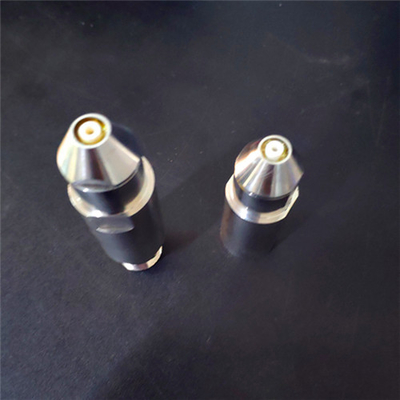

DIN 19523 Figure 1 Ceramic Nozzle For Determination Of Jetting Resistance Of Components Of Drains and Sewers 1
