Glow wire test apparatus, glow wire tester without test chamber , IEC 60695-2-10 Glow Wire Tester ,

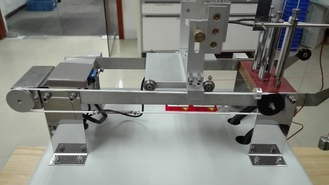

Large Image :  Glow wire test apparatus, glow wire tester without test chamber , IEC 60695-2-10 Glow Wire Tester ,

Product Details:
Place of Origin: China
Brand Name: KingPo
Certification: Calibration Certificate
Model Number: KP-GWT01
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: To be quoted
Packaging Details: safety carton pack or plywood box
Delivery Time: 30 working days
Payment Terms: T/T
Supply Ability: 3 sets per month
Detailed Product Description
Glow Wire Temp.: 0~1000℃±2℃ Constantly Adjustable Thermocouple: Φ1.0 Mm
Glow Wire: Φ4 Mm (>77%Ni/20±1%Cr) Force: 0.95N±0.1N
Test Speed: 10-25mm/s Current: Accuracy ±2.5% Or More Accurate
Voltage: Stable ±2% During The Test Silver Foil: Purity >99.8%
Standard: IEC60695-11-20 Standard Timing Accuracy: 0.1s
High Light:

Glow Wire Test Equipment


IEC 60695-2-10 Glow Wire Tester

Glow Wire Tester , glow wire tester without test chamber , IEC 60695-2-10 Glow Wire Tester


Glow wire test is a simulation experiment project using non-flame ignition source in accordance to standard requirements of IEC60695-2-10,UL 746A .It makes required material(>77%Ni/20±1%Cr) and heating wire in required shape(Φ4mm-chromel-filament)heated up to test temperature( 550 ℃ ~ 960 ℃) and then broil the specimen using required pressure (0.95N±0.1N) for 30s at vertical direction;to check whether the specimen and bedding material ignite and lasting ignition time to test the ignition fatalness of electrical and electronic finished devices


Test the ignition performance,ignition temperature (GWIT),solid insulating material and other solid combustible material,combustibility and flammability index(GWFI) .
It can be applied to research,production and quality testing department of electrical and electronic devices and component parts like lighting equipment,low voltage apparatus,eletrotechnical instrument,etc.


Technical Parameter
1, glow wire temp.:100~1000℃±2℃ constantly adjustable
2, broil time:0-999.9s±0.1s adjustable (generally choose 30s)
3, ignition time:0-999.9s±0.1s
4, smother time:0-999.9s±0.1s
5, thermocouple:Φ1.0mm K type
6, glow wire:Φ4 mm (>77%Ni/20±1%Cr)
7, broil into depth:7mm±0.5mm
8, specimen pressure:0.95N±0.1N
9, test speed:10-25mm/s
10, U head standard:IEC60695-2-10.
11, test procedure:Manual control,independent exhaust system
12, Reference Standard: IEC60695-2-10,UL746A
13, external dimension:550mmW×350mmD×600mm
