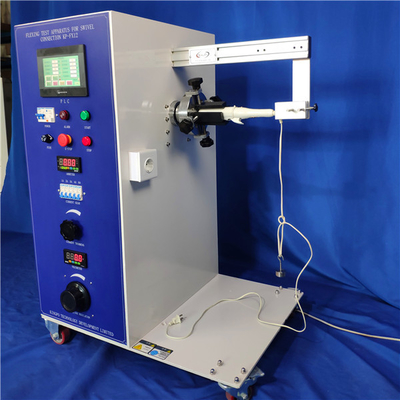

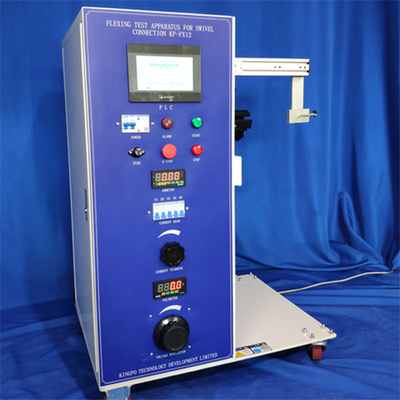

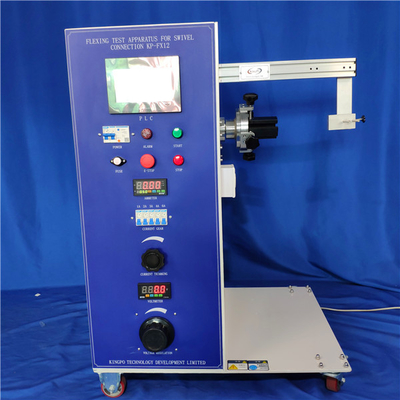

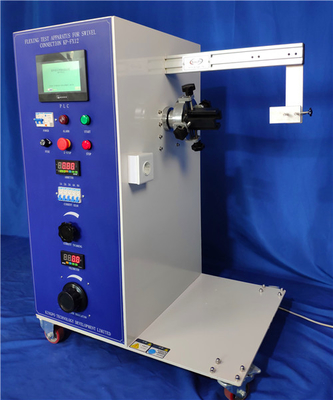

IEC 60335--2-23 Flexing test apparatus for swivel connection-Skin or Hair Care Appliance
Standard:
IEC60335-2-23 clause 11.101 of Household and similar electrical appliances – Safety: Part 2-23: Particular requirements for appliances for skin or hair care.
Application:
The device is used to process the mechanical endurance and temperature rise test for the appliance incorporating a swivel connection.
Test sample:
Appliance incorporating a swivel connection, such as curling iron, perm and etc.
Features:
The device adopts floor-type structure, PLC control, touch screen operation, the test cycles, test speed can be preset, with built-in load. The appliance is rotated about its major axis at a rate of approximately 50 rev/min, the direction of rotation being reserved every 20 revolutions. The test is carried out for 1500 revolutions, when the preset test cycles is completed, the test system will stop testing automatically.
Technical parameters:
1. Rotation speed: 0-100 RPM (adjustable).
2. The direction of rotation :being reversed every 20 revolutions.
3, the number of cycles: 0-1000000 (adjustable).
4, Weight : 1N;
5. Test station: single station;
6, temperature detection: handheld infrared temperature measurement;
7. Control mode: PLC control, touch screen operation; 8.Size and weight: WDH=800×500×1100mm,150kg
9, working power: AC 220V,50HZ./110V,50HZ
