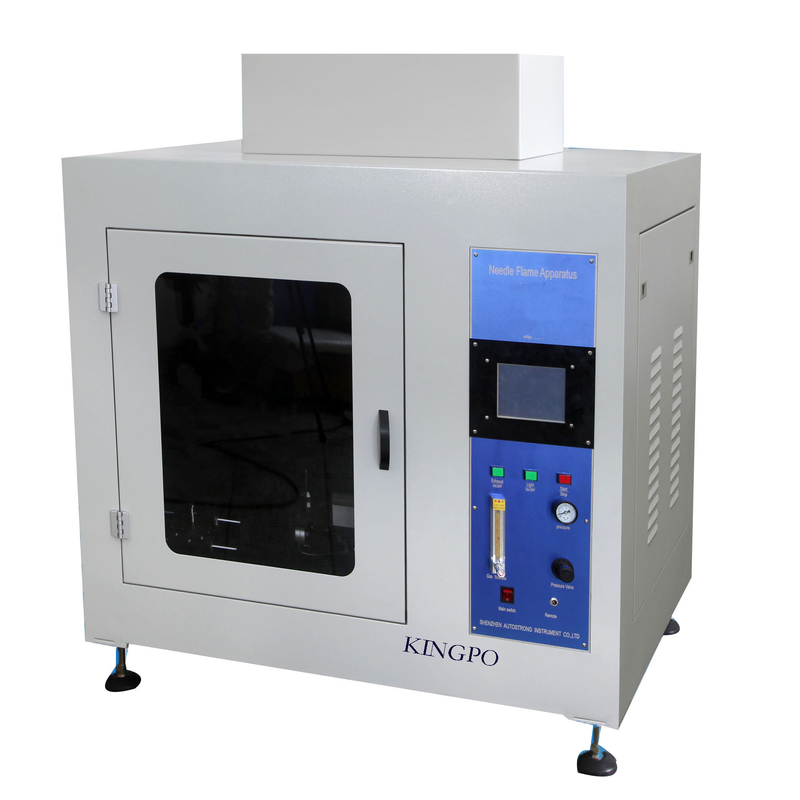

Needle Flame Tester ,IEC60695-11-5 Flammability Testing Equipment

Needle Flame Tester ,IEC60695-11-5 Flammability Testing Equipment
Needle Flame Tester ,IEC60695-11-5 Flammability Testing Equipment

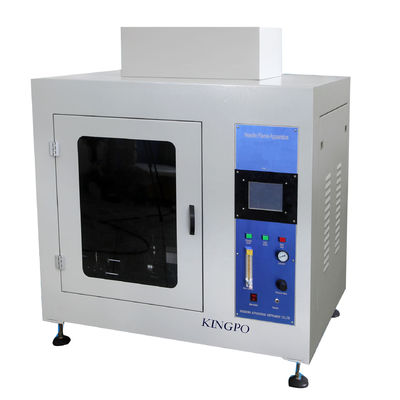

Large Image :  Needle Flame Tester ,IEC60695-11-5 Flammability Testing Equipment

Product Details:
Place of Origin: China
Brand Name: KingPo
Certification: Calibration Certificate
Model Number: KP-FT02
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: To be quoted
Packaging Details: safety carton pack or plywood box
Delivery Time: 30 working days
Payment Terms: T/T
Supply Ability: 3 sets per month
Detailed Product Description
Needle-shaped Burner: Higher Than 35mm Stainless Steel Pinhead: Φ0.9mm-Φ0.5mm
Burner Angle: 0°,45°adjustable Flame Height: 12mm ± 1mm
Ignition Gas: Butane Or Propane With More Than 95% Purity Test Temperature: 0~1000℃
High Light:

IEC60695-11-5 Flammability Testing Equipment


UL746A Flammability Testing Equipment


220V Needle Flame Tester

Needle Flame Tester, IEC60695-11-5 Flammability Testing Equipment





Needle Flame Tester is a simulation experiment project using non-flame ignition source in accordance to standard requirements of IEC60695 -11-5,GB/T5169.5-2008,GB4706.1-2005 ,etc.

Needle Flame Tester uses Needle-shaped burner in required size (Φ0.9mm ) ;transport butane gas into it ,ignite the specimen at a regular time and angle of 45° ,to check whether the specimen ignite ,lasting ignition time and combustion length to test the ignition fatalness of devices inside because of flammule caused by breakdown.

Needle Flame Tester is suitable for research,production and quality testing department of electrical devices and component parts like lighting equipment,low voltage apparatus,household appliance,machine tool electric appliance,motor-driven machine,electric tool,electronic instrument,electrical connectors and accessories;also suitable for insulating material,engineering plastic and other solid combustible material industry.



With predetermined size (Φ 0.9 mm) needle burner, in 45°angle burning product,measure the fire risk by product light-off or hold burning time.


Technical parameters:

Needle burner inner hole diameter Φ 0.5mm ± 0.1mm, Diameter,9mm≤Φ, length ≥ 35mm, stainless steel
Burner angle 0°, 45° (adjust flame height)
Thermocouple Ø0.5mm Type K (Ni/Cr - Ni/Al), armored sheath can withstand temperature-40°C~ 1100°C
Burning time 0-999.9 s ± 0.1 s adjustable (usually selected for 30s)
Hold Burning time 0-999.9 s ± 0.1 s, automatic recording, manual timeout
Flame Height 12mm ± 1mm (with height measurement instruments)
Flame Gas butane gas/Butane gas, min. 95% purity (can use bottled lighter gases)
Temperature Test Range 0~1000°C
Flame Temperature Requirements from 100 °C ± 2 °C liters to 700 °C ± 3 °C time in 23.5 seconds ± 1 seconds
Standard Copper Block 4mm±0.01mm, weight.0.58g±0.01g before drilling. Cu-ETP
Test process automatic control, independent convulsions
Chamber ≥0.5m3
Size W1100mm×D700mm×H1300mm, exhaust hole Ø100mm
Control Using single chip microcomputer + touch screen control
Consult standard  EN 60695−11−5, IEC60695−11−5,UL746A
Power Supply 220V, 48-60Hz
Display panel language Chinese + English (adjustable)

Burner Angle

Needle Flame Tester ,IEC60695-11-5 Flammability Testing Equipment 0


Test position

Needle Flame Tester ,IEC60695-11-5 Flammability Testing Equipment 1


The mode of suspension of the copper block shall be such that the block remains essentially stationary during the test.

Needle Flame Tester ,IEC60695-11-5 Flammability Testing Equipment 2


Gauge to measure flame height

Needle Flame Tester ,IEC60695-11-5 Flammability Testing Equipment 3
