| MOQ: | 1 |
| Price: | 1 |
| Standard Packaging: | 1000*1000*1000CM |
IEC 62368 Test Equipment.IEC 62368-1 TESTING AND MEASURING EQUIPMENT
| No. | Items | Description |
| 1 | Temperature and humidity chamber | IEC62368-1-cl.4.1.4 Model:KP-HWS1000L |
| 2 | Test Apparatus for device forming mains plug |
IEC62368-1-cl.4.7 Model :KP-LJ220 Technical Parameter: 1. As per IEC60065-fig11 2. Weight: 1N, 2N. 3. Socket:UK, EU. 4. Arm of force 0-320mm 5.mension: 350*150*150 mm |
| 3 | Jointed test probe for equipment likely to be accessible to children | IEC62368-1-cl.4.8 IEC 62368 -1-Figure V.1 |
| 4 | Unjointed test probe | IEC62368-1-cl.4.8 IEC62368-Annex V.1.3 Test method 2 |
| 5 | Test hook | IEC 62368-Figure 20 |
| 6 | Flat surface | IEC62368-1-cl.4.8.4.6 size:100 mm by 250 mm) |
| 7 | Measuring network, touch current weighted for perception or reaction | IEC 60990 figure 4 |
| 8 | Measuring network, touch current weighted for let-go | IEC 60990 figure 5 |
| 9 | 2kΩ resistor | 2kΩ±2% |
| 10 | Jointed test probe for equipment not likely to be accessible to children | Test probes V2 |
| 11 | Blunt probe | Test probes V3 |
| 12 | Wedge probe | Test probes V4 |
| 13 | Terminal probe | Test probes V5 |
| 14 | Winding hot resistance tester | IEC62368-1-cl.5.4.1.4, Model:RC3002 Measuring range: 0.500~99.99Ω,±(-0.2% reading +5 D). 99.99~2000Ω±(-0.2% reading +2 D). 2000~10000Ω±(-0.2% reading +1 D). Power supply:AC220V, 50/60Hz , Size:380(W)×340(D)×120(H) |
| 15 | Pink Noise Generator | Pink Noise according to IEC62368-1- Annex E http://www.batterytestingmachine.com/sale-10623142-pink-noise-generator-it-test-equipment-iec-60065-clause-4-2-and-4-3-and-iec-62368-1-annex-e.html |
| 16 | Scratch test device with steel pin | Annex G 13.6.2 http://www.batterytestingmachine.com/sale-11991421-iec-60950-1-clause-2-10-8-4-automatic-abrasion-resistance-tester-printed-circuit-abrasion-strength-d.html |
| 17 | Vicat test B 50 of ISO 306 | IEC62368-1-cl.5.4.1.10 Dimension: 720mm×700mm×1380mm Temperatrue: RT+10~300℃ Maximum temperature indication error :0.1℃ Temperature indication precision: ±0.5℃ Deformation measurement range: 0—1.0mm Resolution:0.01mm Sample holder number: 3 sets Power: 4Kw Power supply: 220VAC 50Hz |
| 18 | Ball pressure test apparatus | IEC62368-1-cl.5.4.1.10 http://www.batterytestingmachine.com/sale-11226669-iec-60695-10-2-2014-ball-pressure-tester-with-test-specimen-support-hot-deformation-capacity.html |

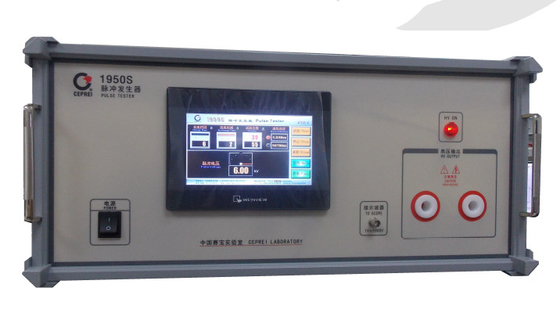

| 19 | circuit 1 of Table D.1._Impulse test generator |
IEC62368-1-cl.5.4.2.3.2.5 IEC 62368-1/Ed3-Figure D.1 Model:1950S |
| 20 | circuit 3 of Table D.1._Impulse test generator | IEC62368-1-cl.5.4.2.3.2.5 IEC 62368-1/Ed3-Figure D.2 Model:KP-PRM65 |
| 21 | Tracking Index Tester | IEC62368-1-cl.5.4.3 Model:KP-FT02 |
| 22 | Mandrel test | IEC62368-1-cl.5.4.4.6.5 IEC 62368-1- Figure 25-28 Weight:100N*1,50N*1( the pulling force of 50N, 100N, 150N can be achieved Rotate angle:230° Test mandrel:Triangle bar with a tip |
| 23 | Electric Strength Test | Dielectric strength tester Made accord to IEC 62368-1-Figure 29, IEC60065, UL1310 standards Pole diameter: 5 ± 0.1mm Metal club weight: 100 ± 2g |
| 24 | Non-inductive Resistor 5000Ω and Ampere meter | IEC62368-1-cl.5.4.11 |
| 25 | Source with at least 1500A short circuit | IEC62368-1-cl.5.6.4.1 (Annex R) http://www.batterytestingmachine.com/sale-12593671-250v-it-test-equipment-limited-short-circuit-test-iec-62368-1-annex-r.html |
| 26 | Cheesecloth bleached cotton cloth 40g/m2 | IEC62368-1-cl.6.4.8.3.3 |
| 27 | Needle Flame Tester | IEC62368-1-Annex S.2 Model:KP-FT03 |
| 28 | Dark sticky mat, magnified glass with a resolution of 0,1 mm | Conform to IEC 62368-1-cl.8.5.5.2. |
| 29 | magnified glass with a resolution of 0,1 mm Conform to IEC 62368-1-cl.8.5.5.2. Magnification:20x Resolution:0.1mm | |
| 30 | circular plan surface φ30mm | IEC62368-1-T.4 |
| 31 | Flat surface | IEC 62368-1-cl.8.6.2.3. flat surface 12.5cm by 20cm |
| 32 | 800N=330N(item 1 can be used) +100N(item 3 can be used)+150N+200N+flat surface (20N) | |
| 33 | Inclined plane 10° | IEC 62368-1-cl.8.6.4. 1, Tilt angle :0-30 °equipped with angle measuring instrument calibration, easy to operate, high accuracy angle, precision ± 0.5 ° 2, The maximum weight load: 50kg 3, Table size: 1000*1000mm. 4.Glass Thickness:10mm |
| 34 | 75mm width strap | Conform to IEC 62368-1-cl.8.8 |
| 35 | circular plan surface φ30mm | IEC62368-1-cl.8.10.3 |

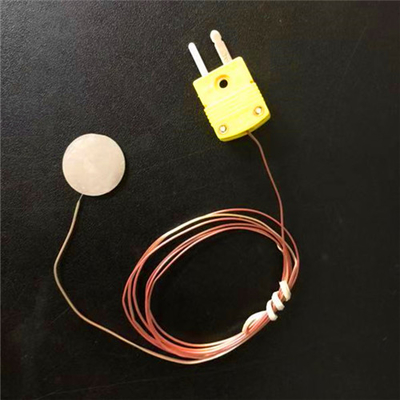

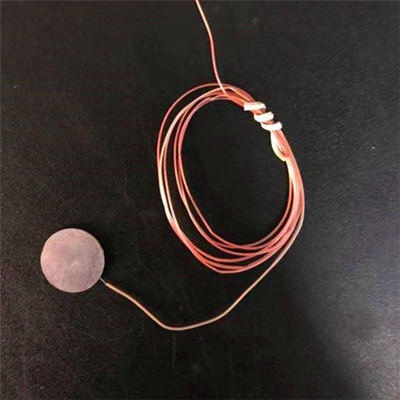

| 36 | Steel disk | IEC 62368-1-cl.9.6.3 IEC CDV 62368-1/Ed3-Figure 47(including thermocouples) |
| 37 | Aluminium ring | IEC 62368-1-cl.9.6.3 IEC CDV 62368-1/Ed3-Figure 48(including thermocouples) |
| 38 | Aluminium foil | IEC 62368-1-cl.9.6.3 IEC CDV 62368-1/Ed3-Figure 49(including thermocouples) |
| 39 | Covering of ventilation openings |
IEC 62368-Annex B.3.2 piece of card with minimum 200 g/m² density |
| 40 | Wrapping Tissue | 12g/ m2 – 30g/m2 |
| 41 | Cord Pull test | IEC 62368-AnnexG.7.3.2.11, Power Supply: AC220V 50HZ; 2, Pull weight: 20N*2,30N*2( the pulling force of 30N,60N,80N,100N can be achieved); 3, Torque weight: 5N*1, 12.5N*1, 17.5N*1 (0.1Nm,0.25Nm,0.35Nm); 4, Tension times: 0~9999(selectable),25 times is by default; 5, Tension frequency: 1 times/s; 6, Torque time: 0.01S～99 hours 99 mins; |
| 42 | impact test | IEC 62368-Annex T.6 φ50mm/500g± 25g steel ball, |
| 43 | Drop test | IEC 62368-Annex T.7 Hard wood 13mm on 18mm ± 2mm plywood, two layers |
| 44 | Centre punch for Fragmentation test | IEC 62368-Annex T.10 1.Weight: 75 g ± 5 g 2. Material: conical tungsten 3. Feature: a carbide tip with an angle of (60 ± 2)° |
| 45 | Vicat softening test apparatus | Dimension: 720mm×700mm×1380mm Temperatrue: RT+10~300℃ Maximum temperature indication error :0.1℃ Temperature indication precision: ±0.5℃ Deformation measurement range: 0—1.0mm Resolution:0.01mm Sample holder number: 3 sets Power: 4Kw Power supply: 220VAC 50Hz |
| 1.35kg hammer | IEC62368-1-Annex Y.4.4. | |
| Gasket test | IEC62368-1-Figure Y.1 | |
| φ1mm*13mm | IEC2368-Annex P | |
| Three vertical bar signal | IEC2368-Annex B.2.5 | |
| UV Radiation Test Equipment | IEC 62368-1 Annex C | |
| Water spray test apparatus | IEC 62368-1 Annex Y.5.3 |
|
|
