| MOQ: | 1 |
| Price: | To be Quoted |
| Standard Packaging: | safety carton pack or plywood box |
| Delivery Period: | 30 working days |
| Payment Method: | T/T |
| Supply Capacity: | 80 sets per month |

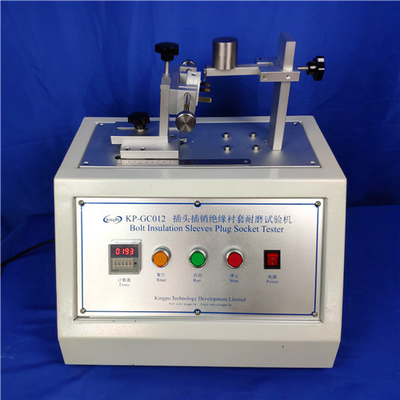

AS/NZS 3112 ABRASION TEST APPARATUS FOR INSULATION ON INSULATED PIN PLUGS
Standard: IEC 60884-1- figure 28, BS1363-1 figure 9, EN50075, AS/NZ3112
Application: This device is use for test the abrasion resistance strength of insulation sleeve of plug pins
Test sample: Insulation Sleeve of plug pins
Feature: Device consists of a horizontal placement of the beam and the linear movement of the fixture seat, wherein, beam ends with diameter 1mm short steel wire is bent into a U-shaped head (U shape of two vertical fixed on the beam), wire U-shaped bottom is 6mm linear part. Compress the 6mm hemline on the plug insulation sleeve, the motor drives the mounting bolt clamp seat to do reciprocating movement back and forth, conducting the abrasion test to insulation sleeve of plug pins
Technical Parameters
| Power Supply | 220V 50Hz |
| Number of Test | 1~999999 |
| Rate of Abrading | 30±1 movements per minute |
| Load | 4N |
| Number of Test Station | 1(two working stations can be customized) |
| Conforms to standard | IEC60884 Figure 28,VDE0620 Bild 29,EN50075Fig9,BS1363 Fig 9 |
|
|
