Device For Checking The Resistance To Lateral Strain , IEC 60884-1 Test Equipment

Product Details:

Place of Origin: China
Brand Name: Kingpo
Certification: Calibration Certificate
Model Number: IEC 60884-1-figure 13

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: To be Quoted
Packaging Details: safety carton pack or plywood box
Delivery Time: 15 working days
Payment Terms: T/T
Supply Ability: 150 sets per month
Contact Now

Detail Information

Standard: IEC60884 Figure 13 Material: Stainless Steel
Weight: 5N Test Time: 4 Times ,turn Through 90° After Each Test
High Light:

IEC 60884-1 Test Equipment

,

IEC60884 Figure 13

,

IEC 60884-1 2013 clause 13.14 figure 13

Product Description



IEC60884clause 12.14 testing equipment of Lateral Strain for socket-outlets with 5N weight​



Standard: IEC 60884-1 2013 clause 13.14 figure 13



Application: This device is use to check whether any damage to the socket-outlets ratings up to 16A and 250V when a inserted appliance applying a lateral strain to it.



Test sample: Socket-outlets



Feature: Made according to standard dimension requirements, use to check the mechanical strength of socket hole



Parameters:

sets of test plug, according to clients requirements,

Standard IEC60884 Figure 13
Lifting heavy weights 5N
Test samples socket of rated current is ≤ 16A and the voltage is ≤ 250V





Standard:

Socket-outlets shall withstand the laterin imposed by equipment likely to be introduced into them .

For socket-outlets having ratings up to and including 16A and 250V,compliance is checked by means of device shown in figure 13.

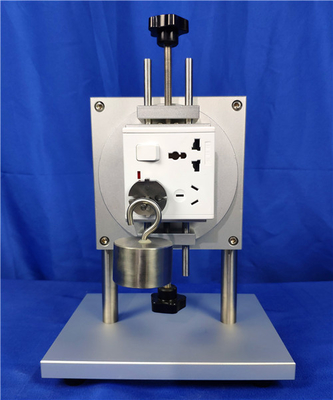

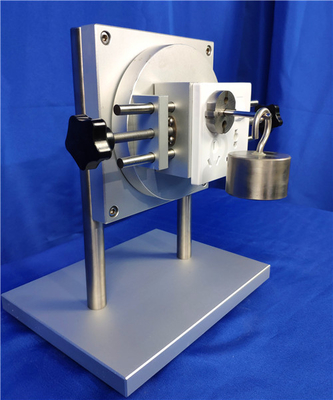

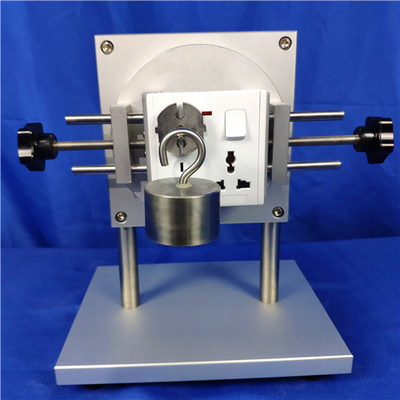

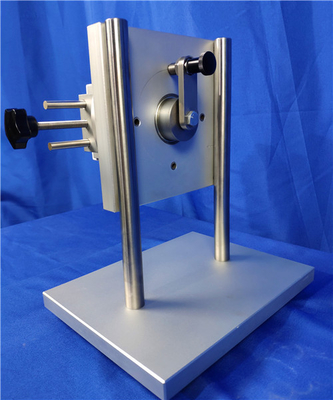

Each specimen is mounted on a vertical surface with the plane through the socket-contacts horizontal .The device is then fully engaged and a weight hung on it such that the force exerted is 5N.

The device is removed after I min and the socket-outlet is turned through 90,on the mounting surface ,The test is made four times ,the socket-outlet being turned through 90 after each engagement .

During the test the device shall bnot become disengaged from the socket-outlet.

After the test , the socket-outlet shall show no damage within the meaning of this standard ,in particular ,they shall comply with the requirements of clause 22.

It is equipped with test plug of GB6A two-plug plug, GB10A three-plug, GB16A three-plug plug.



Device For Checking The Resistance To Lateral Strain ,  IEC 60884-1 Test Equipment 0

Device For Checking The Resistance To Lateral Strain ,  IEC 60884-1 Test Equipment 1

Device For Checking The Resistance To Lateral Strain ,  IEC 60884-1 Test Equipment 2



TESTING AND MEASURING EQUIPMENT/ALLOWED SUBCONTRACTING

IEC 60884-1:2002-06+A1:2006-05+A2:2013-02, Edition 3.0

Plugs and socket-outlets for household and similar purposes – Part 1: General requirements



Clause Measurement/testing Testing / measuring equipment / material needed Subcontracting
8.8 Test of markings Water, petroleum spirit R
9 Checking of dimensions Caliper, micrometer, gauges R
10 Protection against electrical shock

Jointed test finger, unjointed testfinger, electrical indicator
Figures 9 and 10: Gauges for checking non-accessibility of live parts, through shutters, and of live parts of socket-outlets with increased protection

Test plug

R
11.5 Measuring of contact resistance AC source, measuring instruments R
12.2 Tests on screw terminals Screw driver and spanner with torque meter, weights
Figure 11: Arrangement for checking damage to conductors
R
12.3 Tests on screwless terminals Weights Figure 11: Arrangement for checking damage to conductors
AC source, measuring instruments
Figure 12: Deflection test apparatus
R
13.14 Lateral strain of socket-outlets Figure 13: Device for checking the resistance to lateral strain R
13.22
13.23
Test on membranes Heating cabinet
Freezer
R
14.2 Test of non-solid pins Figure 14: Device for testing of non-solid pins R
14.23.1 Temperature rise test on plugs of plug-in equipments AC source, measuring instruments, temperature measuring device R
14.23.2 Torque test on plugs of plug-in-equipment Apparatus for the torque test R
16.1 Ageing test Heating cabinet, humidity chamber R
16.2 Protection provided by enclosures Figure 15: Test wall in accordance with the requirements of 16.2.1 R
Test apparatus acc. IEC 60529:
Jointed test finger
Rigid sphere 50 mm diameter
Rigid sphere 12,5 mm diameter
Rigid steel rod 2,5 mm diameter
Rigid steel rod 1,0 mm diameter
R
Dust chamber S
Drip box
Drip box -15°
Oscillating tube/spray ± 60° or spray nozzle/spray ± 60°
Oscillating tube/spray ± 180° or spray nozzle/spray ± 180°
R
Water jet hose nozzle – nozzle 6,3 mm diameter
Water jet hose nozzle – nozzle 12,5 mm diameter
Immersion tank
S
16.3 Humidity treatment Humidity chamber R
17.1 Insulation resistance Insulation test equipment R
17.2 Electric strength High voltage test equipment R
19 Temperature rise

AC source, measuring instruments, temperature measuring device, test block for flush-mounted accessories

Clamping unit for the temperature rise test (Figure 44)

R
20
21
Breaking capacity
Normal operation
Figure 16: Apparatus for breaking capacity and normal operation,
AC source, adjustable load (resistors and inductors), measuring instruments
Figure 9: Gauge for checking non-accessibility of live parts, through shutters, after normal operation test
Figure 10: Gauge for checking non-accessibility of live parts, through shutters, and of live parts of socket-outlets with increased protection
R
22.1 Verification of the maximum withdrawal force Figure 18: Apparatus for checking the withdrawal force, test-plug R
22.2 Verification of the minimum withdrawal force Figure 19: Gauge for the verification of the minimum withdrawal force R
23.2 Test of the cord retention Figure 20: Apparatus for testing the cord retention
Apparatus for the torque test
R
23.4 Flexing test Figure 21: Apparatus for flexing test R
24.1 Impact test Figures 22, 23, 24, 25 and 26: Impact-test apparatus R
24.2 Tumbling barrel test Tumbling barrel according to IEC 60068-2-32 R
24.3 Test on ordinary surface-type socket-outlets Cylinder of rigid steel sheet
Flat steel sheet
R
24.4 Impact test at low temperature Figure 27: Apparatus for impact test at low temperature R
10.1
24.5
Impact test at low temperature Figure 8: Arrangement for compression test R
24.6 Test on screwed glands Metal rods
Test-spanner with torque meter
R
24.7 Abrasion test Figure 28: Apparatus for abrasion test on insulating sleeves of plug pins R
24.8 Test on shutters Test-pin, electrical indicator R
24.9 Test on multiple portable socket-outlets Figure 29: Arrangement for mechanical strength test on multiple portable socket-outlets R
24.10 Test of the fixing of the pins Figure 30: Example for test arrangement to verify the fixation of pins in the body of the plug R
24.11
24.12
24.13
Test on portable socket-outlets with suspension means Cylindrical steel rod R
24.14
up to
24.18
Removal of covers or cover-plates Weights Figure 31: Arrangement for test on covers or cover-plates
Figure 32: Gauge for the verification of the outline of covers or coverplates
Figure 35: Gauge for verification of grooves, holes and reverse tapers
R
25 Resistance to heat

Heating cabinet

Figure 37: Ball pressure test apparatus
Figure 38: Apparatus for compression test for the verification of resistance to heat

R
26 Screws, current carrying parts and connections Screw-driver and spanner with torque meter R
27 Creepage distances, clearances Caliper
Tolerances gauges
R
28.1.1 Glow-wire test Test apparatus according to IEC 60695-2-10 R
28.1.2 Test of the resistance to heat of pins with insulating sleeves Figure 40: Apparatus for testing resistance to abnormal heat of insulating sleeves of plug pins R
28.2 Resistance to tracking Test apparatus according to IEC 60112 R
29 Resistance to rusting Chemicals
Humidity cabinet
Heating cabinet
R
30.1 Pressure test at high temperature Figure 41: Apparatus for pressure test at high temperature
Heating cabinet
R
30.2 Static damp heat test Climatic chamber according to IEC 60068-2-30 R
30.3 Test at low temperature Freezer R
30.4 Impact test at low temperature Figure 42: Impact test apparatus on pins provided with insulating sleeves R
