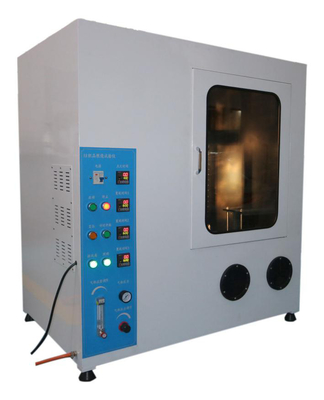

UN ECE R118 (Rev. 2) Annex 6 / ISO6941 Vertical Burning Test Chamber

small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  UN ECE R118 (Rev. 2) Annex 6 / ISO6941 Vertical Burning Test Chamber

Product Details:
Place of Origin: China
Brand Name: Kingpo
Certification: Calibration Certificate
Model Number: KP-FT07
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: To be Quoted
Packaging Details: safety carton pack or plywood box
Delivery Time: 30 working days
Payment Terms: T/T
Supply Ability: 10 sets per month
Detailed Product Description
Standard: UN ECE R118 Annex 8 / ISO6941 Test Box: 1200*600*1200mm
Template: 180×560mm Specimen: (560×170)±2mm,warp Direction And Across Warp Each Are Three
Flame Height: 40±2mm Ignition Time: 5s / 15s
High Light:

ISO6941 Flame Test Equipment


UN ECE R118 Annex 6 Flame Test Equipment


ISO8124 Flame Test Apparatus


This test consists of exposing samples, held in a vertical position, to a flame and determining the speed of propagation of the flame over the material to be tested.


Scope and field of application:

This international standard specifies a method for the measurement of flame spread properties of vertically oriented textile fabrics intended for apparel, curtains, draperies and large tents including awnings and marquees, in the form of single or multicomponent (coated, quilted, multilayered, sandwich construction and similar combinations) fabrics.

The test results will not apply to situations where the oxygen supply is insufficient or when the heat is too long in the fire.


Test standard:

ISO6941 ,UN ECE R118-Annex 8,ISO8124...


Technical parameters


Test box 1200*600*1200mm
Template 180×560mm
Specimen holder 180×560mm
Specimen (560×170)±2mm,warp direction and across warp each are three
Flame height 40±2mm
Ignition time 5s / 15s
Mark line distance 220mm,150mm,150mm
The angle between the axis of the ignition device and the surface of the specimen 30°/45°/ 90°
