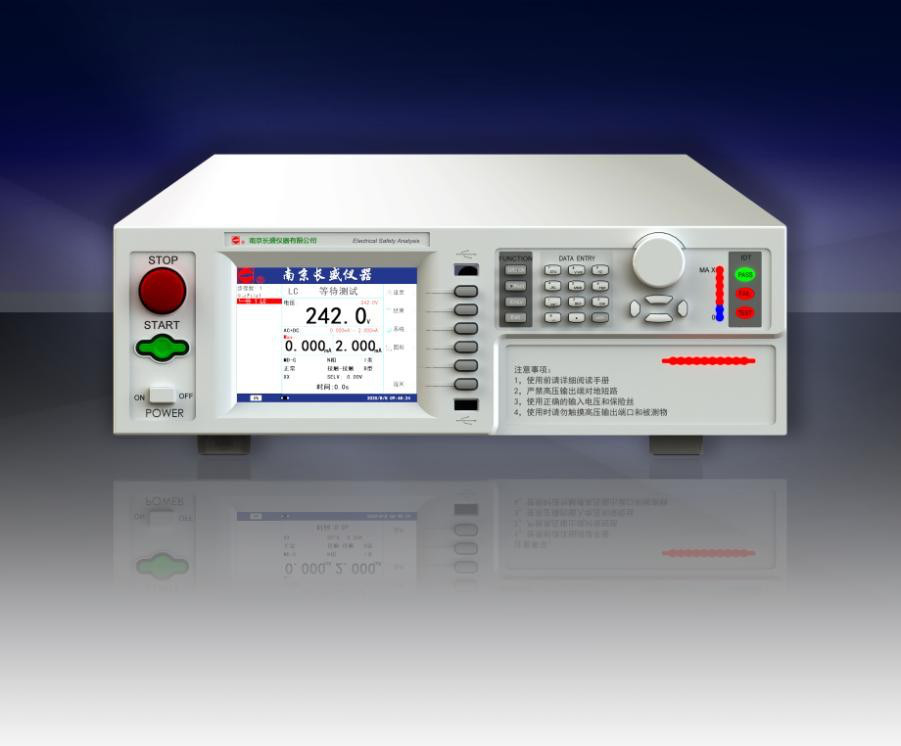

IEC60601 Programmable Leakage Current Tester
  • name

IEC60601 Programmable Leakage Current Tester

MOQ: 1
Price: To be Quoted
Standard Packaging: safety carton pack or plywood box
Delivery Period: 30 working days
Payment Method: T/T
Supply Capacity: 10 sets per month
Detail Information
Product Description
Detail Information
Place of Origin
china
Brand Name
kingpo
Certification
iso9001 ce
Model Number
CS9975-SIW
Power:
Electronic,Hydraulic,AC 1 Phase 220V 50Hz 500W
Usage:
Auto Testing Machine,Drop Test Equipment,Plastic Testing Machine
Product Name:
International Standards ASTM D3574 PU Foam IFD Testing Equipment
Weight:
13kg
Highlight:

Programmable Leakage Current Tester

,

IEC60601 Leakage Current Test Equipment

,

Programmable Leakage Current Measurement Device

Product Description

Use 5.6 inch TFT (640*480) to display the setting parameters and test parameters, and the display content is eye-catching and rich;
 The tester can store the test results in the format of EXCEL table in U;
 Software can be upgraded through U disk;
 Compliance leakage current test Human body network: GB9706.1(IEC60601-1)/GB4793.1(IEC61010-1)/GB4706.1(IEC60335-1)/GB4943.1(IEC60950-1)/
GB8898(IEC60065)/GB7000.1(IEC60598-1)/GB/T12113(IEC60990) standard;
Leakage current provides four detection methods of AC, AC+DC, PEAK, DC;
Provide auxiliary power supply required for medical equipment testing;
Bilingual operation interface in Chinese and English to adapt to the needs of different users;
 Support keyboard lock operation to prevent irrelevant personnel from modifying test parameters;
Support conversion between test files, explanation: when there are many test steps, you can distinguish by file name, which is convenient for parameter adjustment in the later period;
Can be equipped with CS26045Y test box to realize multi-point scanning test;
Support scan code gun function;
 Standard PLC interface, RS232 interface, optional LAN interface, RS485 interface, USB interface.IEC60601 Programmable Leakage Current TesterIEC60601 Programmable Leakage Current Tester
IEC60601 Programmable Leakage Current TesterIEC60601 Programmable Leakage Current TesterIEC60601 Programmable Leakage Current Tester

Model CS9975-SIW

























Leakage current





voltage

 range 30.0V～300.0V
Precision ±(2％ reading +2V)
Resolution 0.1V
Maximum external isolated power supply 6000VA
Current gear 20uA, 200uA,2mA,20mA
Detection method AC,RMS,PEAK,DC
Current upper limit setting 00.1uA～20.00mA
Current lower limit setting 00.0uA ～Current upper limit
MD Human Network







GB9706.1(IEC60601-1)

GB4793.1(IEC61010-1)/ GB4706.1(IEC60335-1)/ GB4943.1(IEC60950-1)/ GB8898(IEC60065)/ GB7000.1(IEC60598-1)/

GB/T12113(IEC60990)
Voltage rise time Can not be set
testing time (0.0, 0.3～999.9)s 0=continuous test
Intervals (0.0～999.9)s 0=interval time off









Leakage current meter

 Measuring range 00.0uA ～ 20.00 mA
Resolution 20 uA 档:0.1uA,200 uA 档:0.1uA,2mA 档:1uA,20mA 档:10uA





measurement accuracy

 AC I≥5 uA ±(2%rdg+0.5%fs) I≥50 uA ±(2%rdg+0.5%fs)
DC I≥5 uA ±(2%rdg+0.5%fs) I≥50 uA ±(2%rdg+0.5%fs)
AC+DC I≥5 uA ±(2%rdg+0.5%fs) I≥50 uA ±(2%rdg+0.5%fs)
PEAK I≥50 uA ±(2%rdg+2%fs)





Leakage voltage meter

 range 30.0V～300.0V
Precision ±(2%+2V)
Resolution 0.1V
Display value Root mean square

Timing

Device

 range 0～999.9s
Resolution 0.1s
Precision ±(1%+50ms)
Memory group 30
Test step 99
Input power supply voltage 220V±10%,50Hz
Import the memory file to the U disk, and export the U disk to the instrument support
Export storage results to U disk support
Standard interface RS232 interface, PLC interface
Tags:

medical test machine,

medical testing device,

IEC test equipment
