|Drip Area:||800*800mm||Oscillating Tubes:||R200,R400|
|Drip Hole Aperture:||0.4mm||Drip Rate:||1mm/min Or 3mm/min Adjustable|
|IPX5 Nozzle Diameter:||6.3mm||IPX6 Nozzle Diameter:||12.5mm|
|IPX5 Water Flow:||12.5±0.62 L/min||IPX6 Water Flow:||100±5 L/min|
|Water Pressure:||Adjustment||Power Supply:||380V 50Hz|
IPX6 Rain Test Chamber,
IEC60529 IP Testing Equipment,
IP Waterproof Degrees Test Equipment

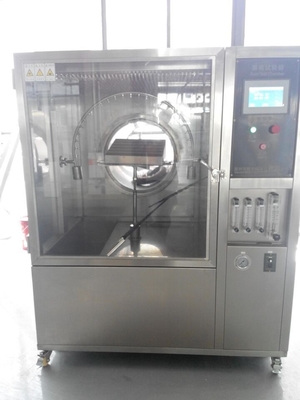

IEC60529 IPX1-6 Waterproof Degrees Test Equipment Ingress Protection Test Chamber
IPX1/2, IPX3/4 ,IP5/6 waterproof degrees test equipment are designed and manufactured according to IEC 60529 < Degrees of protection provided by enclosures (IP Code)>. This equipment is applied in IPX1, IPX2, IPX3 ,IPX4,IPX5 ,IPX6 waterproof degrees testing purposes, which are widely adopted by luminaire products, electrical and electronic products certification institutions, testing organizations and production enterprises for quality control.
This equipment is suitable for the test of electrical products which are enclosure and sealed in the rain environment whether can ensure the good performance of equipment and components. The scientific design of this equipment, so that the equipment can be realistically simulated dripping water, water spraying, splashing water etc. The application of the comprehensive control system and the frequency conversion technology makes the rotation angle of the test sample rack. The swing angle of the pendulum rod and the swing frequency of the spray water can be adjusted automatically.
1. Drip board area: 800 X800mm
2. Aperture of drop : 0.4mm
3. Pitch-row(mm): 20 mm X 20 mm
4 Delivery rate: Manual(IPX1:1±0.5mm/min, IPX2: 3±0.5mm/min)
5. Product under test (max): 50kg,
6. Turntable speed: 1 RPM ( With Adjustable Speed)
7. Turntable angle: 15°
8. Test time: 0~9999min
1 Oscillating tubes :R400
2 Oscillate angle: 120º (IPX3), 350º (IPX4) or user-defined ( Adjustable angle)
3 Inner diameter of oscillating tube (mm) : 15
4 Hole Pitch : 50 mm
5 Diameter of blowhole: 0.4 mm
6 Water flow rate per hole : 0.07 L/ min ( Adjustable)
7 Height of turntable: 200-700 mm (Adjustable)
8 Product under test (max): 0-50 kg(can customize)
9 Material of tube: SUS304 stainless steel (Preferred)
10 Duration of test : 0~9999min
11. The drip hole has a protective plate to prevent accidental injury to the operator.
1 Control system: PLC controlled
3 IPX5 nozzle diameter: 6.3 mm
4 IPX6 nozzle diameter: 12.5 mm
5 IPX5 water flow: 12.5±0.62 L/min
6 IPX6 water flow: 100±5 L/min
7 Water pressure: adjustment
1. High- quality acid -proof stainless steel 304 inner liner.
2. Outer box is made of stainless steel 304.
3. The sample table is equipped with a circular turntable with adjustable speed.
Safety protection device:
