Double-walled cylinder , IEC 60598-1 Annex K Temperature measurement

Double-walled cylinder , IEC 60598-1 Annex K Temperature measurement
Double-walled cylinder , IEC 60598-1 Annex K Temperature measurement Double-walled cylinder , IEC 60598-1 Annex K Temperature measurement Double-walled cylinder , IEC 60598-1 Annex K Temperature measurement Double-walled cylinder , IEC 60598-1 Annex K Temperature measurement

Large Image :  Double-walled cylinder , IEC 60598-1 Annex K Temperature measurement

Product Details:
Place of Origin: China
Brand Name: KingPo
Certification: Calibration Certificate
Model Number: IEC 60598-1 Annex K
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: To be quoted
Packaging Details: safety carton pack or plywood box
Delivery Time: 7 working days
Payment Terms: T/T
Supply Ability: 50 pcs per month
Detailed Product Description
Place Of Origin: Guangdong,China(mainland) Standard: IEC 60598-1 Annex K

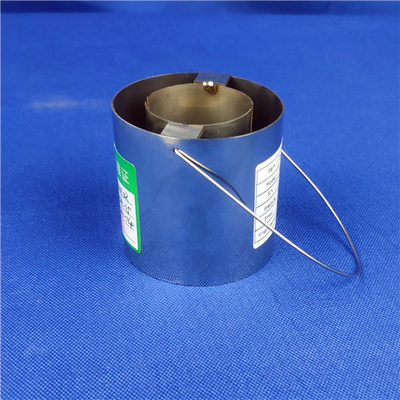

IEC 60598-1 Annex K Temperature measurement- Double-walled cylinder


 Conform to IEC 60598-1 Annex K.1


The average ambient temperature in the draught-proof enclosure is taken to be the air temperature at a position near one of the perforated walls on a level with the centre of the luminaire. The temperature is usually measured by a thermocouple soldered to a metal mass of approximately 30 g shielded against radiation by a double-walled cylinder of polished metal open at the top and bottom.



 1. Material: stainless steel + brass

 2.Brass weight :30g

 3.Cylinder:The outer cylinder diameter is 50mm, the inner cylinder diameter is 20mm, and the height is 50mm

Double-walled cylinder , IEC 60598-1 Annex K Temperature measurement 0




IEC 60598-1:2014, A1:2017 Edition 8.1

Luminaires – Part 1: General requirements and tests



Clause Measurement/testing Testing / measuring equipment / material needed Equipment Classification
3.4 Test of marking Piece of cloth / Water / Petroleum spirit R
4.4.4 Lampholder pressure test Test caps / Pressure device / Torque driver R
4.4.5 Voltage across lampholders High voltage probe / Oscilloscope R
4.11.6 Electro-mechanical contact system Low voltage variable current power supply, voltmeter, high voltage transformer R
4.12.1 / 4.12.5 Screws and connections (mechanical) and glands testing Test screwdriver or spanner / Test rods R
4.13.1/4.13.4 4.13.6/4.21.4


Mechanical strength tests

Spring-operated impact test apparatus / Apparatus for ball impact tests Conditioning cabinet (e.g. freezer) / Angle measuring device / Weighting device / Tumbling barrel test equipment





Adjusting devices testing Glass test shelves / Weighting device / Test apparatus for adjustable devices R
4.9.2/4.18.1 Insulating linings and sleeves tests / Resistance to corrosion Heating cabinet, humidity cabinet, megaohmeter, high voltage transformer R
4.18.2/Annex F Stress corrosion Closeable glass vessel / test solution / Heating cabinet / Facilities to wash samples after test R
4.20 Rough service luminaires Vibration test equipment S
4.22 Attachment to lamps Weighing device R


4.24/Annex P


Photobiological hazard: UV radiation, retinal blue light hazard

  • UV radiation test instruments / retinal blue light hazard test instruments (Equipment List of IEC/TR 62778
  • Goniophotometric measurement system




4.26 Short circuit protection test Test chain / Weighting device R
4.28 Fixing of thermal sensing controls Temperature change test instruments in accordance to IEC 60068-2-14, test Na S Pull and torque tests on cord anchorage Cord anchorage tests apparatus (pull and torque) R
5.3 Internal wiring dimensions Micrometer / Equipment for insulation thickness R
5.4 Test of conductors having a reduced cross-sectional area Thermometer / Thermocouples / Ammeter / Adjustable resistive load R
7.2.3 Earth continuity test Earthing test equipment R



Protection against electric shock tests / Capacitor discharge

Standard test finger (IEC 60529) / Unjointed test finger

Voltmeter / oscilloscope



9.2.0 Solid object proof luminaire testing IP 3X (2,5 mm) / IP 4X (1 mm) probes R
9.2.1 / 9.2.2 Dust proof luminaire tests Apparatus for proving protection against dust R
9.2.3,4,5,6,7, 8,9 Water proof luminaires testing Apparatus for protection against water tests R
9.3.1 Humidity tests Humidity cabinet R
10.2.1 Insulation resistance tests Megaohmmeter R
10.2.2 Electric strength tests High voltage transformer R
10.3.1 Leakage current testing Leakage current tester R
11.2.1 Creepage distances and clearances measurements Digital calliper (or equivalent) / Oscilloscope R
12.3.1 Endurance tests Thermal cabinet (35°C) / Endurance test equipment / Multimeter / Wattmeter R




Thermal tests

Draught-proof enclosure (25°C) or alternative chamber/room / Thermometer / Thermocouples / Voltage stabilizer / Multimeter / Wattmeter




Annex C

Fig. C3


Abnormal operation testing


Test circuit for metal halide luminaires





Test for luminaires with temperature sensing controls internal/external to the ballast or transformer Relevant equipment of clauses 15.3 and 20.6, Equipment List of IEC 61558-1:2005



13.2.1 Resistance to heat test Heating cabinet / Ball pressure test apparatus (see also CTL DSH 391 D) R
13.3.1 Resistance to flame test Needle flame test apparatus R
13.3.2 Resistance to ignition testing Glow-wire test apparatus R
13.4.1 Resistance to tracking test Proof tracking test device R
14 Screw terminals Torque drivers, test cables, pull device, micrometer, timer R
15 Screwless terminals Pull device, variable current source, voltmeter, heating cabinet, timer, test cables R
