0.5 J Spring Impact Hammer For IEC60068-2-75 IEC Test Equipment
IEC 60068-2-75 Environmental testing –Part 2-75: Tests – Test Eh: Hammer tests.
IEC 60065, IEC60335-1, IEC60598-1 and etc.

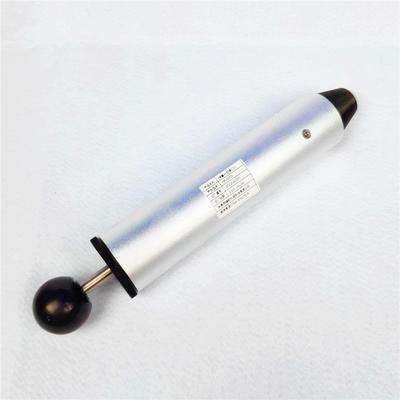

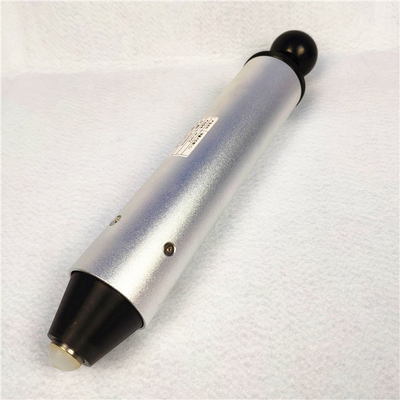

The construction consists of a moving hammer head having a hard polyamide hemispherical face, mounted in a cylindrical body. A knob is attached to the rear of the hammer shaft for the purpose of compressing the hammer spring and setting the striking mechanism. The mechanism is released by applying pressure to the front nose cone. Blows to the sample under test are applied by pushing the release nose slowly against the sample until the release mechanism operates, allowing the spring to propel the hammer against the sample.
Model KP-SH01: Single impact energy model (0.14J ± 0.014J; 0.2J± 0.02J; 0.35J± 0.03J; 0.5J± 0.04J; 0.7J± 0.05J; 1.0J± 0.05J, for option)
Model KP-SH20: Single impact energy of 2J± 0.1J, mass of striking element is 500g, hammer heads made of steel with r=25mm, 10N release force.
Model KP-SH05: Adjustable model with five impact energy of 0.2J± 0.02J; 0.35J± 0.03J; 0.5J± 0.04J; 0.7J± 0.05J; 1.0J± 0.05J, mass of striking element is 250g.
Model KP-SH06: Adjustable model with six impact energy of 0.14J ± 0.014J; 0.2J± 0.02J; 0.35J± 0.03J; 0.5J± 0.04J; 0.7J± 0.05J; 1.0J± 0.05J, mass of striking element is 250g.
||Single energy:0.14; 0.2; 0.35; 0.5; 0.7; 1.0 J for option
||Single energy 2±0.1
||Adjustable model with five impact energy 0.2 and 0.35, 0.5, 0.7, 1
||Adjustable model with six impact energy 0.14 and 0.2, 0.35, 0.5, 0.7, 1
|Impact element mass
Packaging and Shipping

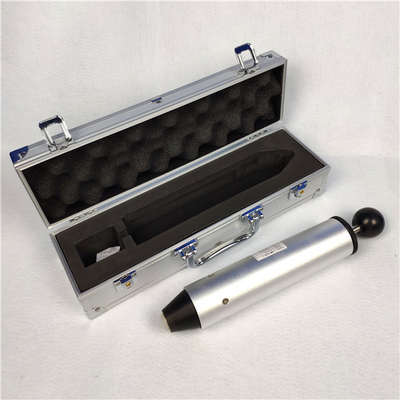

1. Aluminium box and carton box, careful and tight package, make sure the package is intact.
2. The package will be shipped by DHL/Fedex/TNT/EMS/UPS/China post/EF-Express/Special line, as you have chose in the order.
3. The shipping time is different, it depends on the distance bewteen us. At usual, exclude the preparing time, the goods would be sent to you in 5days.
