Iphone Cable Pinch Tester Instrument

Iphone Cable Pinch Tester Instrument

MOQ: 1
Standard Packaging: 100*100*100CM
Detail Information
Place of Origin
china
Brand Name
kingpo
Certification
iso9001 ce
Model Number
HD-CP-001
Power:
Electronic,Hydraulic
Warranty:
One Year
Weight:
150kg
Product Name:
Valve Test Equipment,Electrical Safety Laboratory Testing Equipment
Power Supply:
220V 50Hz
Highlight:

Iphone Cable Pinch Tester

,

Cable Extrusion Testing Machine

Product Description

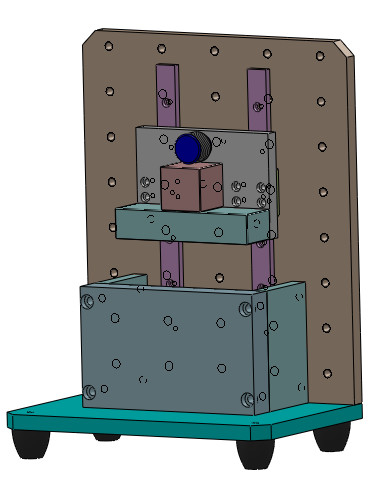

HD-CP-001 Cable Pinch Tester ,Cable Extrusion Testing Machine



Instrument description:

This instrument is designed and processed according to Chapter 7.8 of the APPLE DC line test standard 080-1276- K, which is mainly used to detect the anti-clamping and crushing ability of DC wire. Simulate the damage of wires after being squeezed by sharp objects such as drawers, doors or tables.

Main technical parameters:

  • The drop height :0-200 mm adjustable, and the system can select 90 mm as the fixed drop height of the standard for easy operation (the upper surface of the wire is from the impact surface, which can be changed according to the demand of the wire)
  • The parallel distance between the surface of the extruded element and the surface of the fixed end of the sample is :1-10 MM adjustable, and the default parallel distance from the factory is 2 MM( this standard requirement).
  • Extrusion element weight (including extrusion block and additional weight):770 g
  • Extrusion element material: SKD11 abrasive steel

         Extrusion element chamfer :0.1 MM.

Iphone Cable Pinch Tester Instrument 0

HD-CI-001 Cable Impact tester



Instrument description



This instrument is designed and processed according to the APPLE DC line test standard 080-1276- K, which is mainly used to detect the ability of DC wire to be impacted by sharp objects. Simulate sharp objects fall on the wire to see if the wire is damaged.



Main technical parameters:

  • Arm weight :360 g
  • Impact unit weight: g 590
  • General weight of pendulum :950 g( Remove shaft)
  • Initial impact distance :25.4 cm (10inch, subject to demand adjustment)
  • Initial impact angle :17°(subject to demand adjustment)
  • Impact distance increase or decrease :2.5 cm (1inch)
  • Fuselage size: mm 370,570,1035
  • Wire holder: Adjustable front and back to fit different diameter wires
  • Wire Fixture: Engineering Plastic Processing
  • Impact material: SKD11 die steel

Operation mode: manual operation, wire without load

Iphone Cable Pinch Tester Instrument 1





HD-6159E Apple Charging Line Rotating Test Instrument



Iphone Cable Pinch Tester Instrument 2Iphone Cable Pinch Tester Instrument 3
