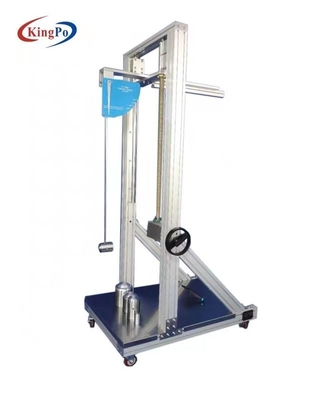

Pendulum Hammer ,IEC 60068-2-75 Test Eha: Pendulum hammer

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  Pendulum Hammer ,IEC 60068-2-75 Test Eha: Pendulum hammer

Product Details:
Place of Origin: China
Brand Name: KingPo
Certification: ISO17025 Calibration certificate
Model Number: IP-IK1200
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: To be quoted
Packaging Details: safety carton pack or plywood box
Delivery Time: 7 working days
Payment Terms: T/T
Supply Ability: 100 sets per month
Detailed Product Description
Standard: IEC 62262/IEC 60068-2-75 Usage: Impact Testing Machine
Function: IK Pendulum Hammer IK CODE: IK07-IK20
Hammer: 2J,5J,10J,20J,50J Pendulum: Length 1000mm
High Light:

IEC 60068-2-75 Pendulum Hammer

,

IEC 60068-2-75 Pendulum Hammer Impact Test Machine

,

IEC 62262 Pendulum Hammer



Pendulum Hammer ,IEC 60068-2-75 Test Eha: Pendulum hammer



1. Degrees of protection provided by enclosures for electrical equipment against external mechanical impacts (IK code)
2. IEC 62262:2002 /
IEC 60068-2-75
3. IK code IK07-IK20



With 2J,5J,10J,20J,50J hammer

energy/J 2 5 10 20 50
Equivalent mass /kg



0.5

1.7 5 5 10
Drop height ±1%/mm 400 300 200 400

500


1.Introduction:

The European standard EN 62262 - the equivalent of international standard IEC 62262:2002 - relates to IK ratings. This is an international numeric classification for the degrees of protection provided by enclosures for electrical equipment against external mechanical impacts.



It provides a means of specifying the capacity of an enclosure to protect its contents from external impacts. The IK Code was originally defined in European Standard BS EN 50102:1995 and amended in 1998. Following its adoption as an international standard (IEC 62262) in 2002, the European standard was renumbered EN 62262.



Before the advent of the IK code, a third numeral had been occasionally added to the closely related IP Code on ingress protection, to indicate the level of impact protection — e.g. IP66(9). Nonstandard use of this system was one of the factors leading to the development of this standard, which uses a separate two numeral code to distinguish it from the old differing systems. The standard came into effect in October 1995 and conflicting national standards had to be withdrawn by April 1997.



EN 62262 specifies the way enclosures should be mounted when tests are carried out, the atmospheric conditions that should prevail, the number of impacts (5) and their (even) distribution, and the size, style, material, dimensions etc. of the various types of hammer designed to produce the energy levels required



2. Technical parameters:



Dimension:780*1100*1920mm(W*D*H)

weight:150kg

Impact sample height: 200-800mm Can be adjusted

Pendulum:length 1000mm

With 0.5kg,1.7kg,5kg hammer



Impact element characteristics:

Energy/J   2 5 10 20 50
Equivalent mass2%/KG   0.5 1.7 5 5 10
Material   steel
R/mm   25 25 50 50 50
D/mm   35 60 80 100 125
f/mm   7 10 20 20 25
r/mm   - 6 - 10 17
L/mm According equivalent mass to adjust and determine

A.Rockwell hardness HRR 85-100,Aaccording to ISO2039-2

B.Fe 490-2 according to ISO1052, Rockwell hardness HRR 80-85, according to ISO6508



Drop height:



Drop height:

Energy/J 2 5 10 20 50
Equivalent mass2%/KG 0.5 1.7 5 5 10
Drop height ±1%/mm 400 300 200 400 500





The Correspondence Between the Collision Energy and IK Code

IK Code IK01 IK02 IK03 IK04 IK05 IK06 IK07 IK08 IK09 IK10
Collision Energy/J 0.14 0.2 0.35 0.5 0.7 1 2 5 10 20







Pendulum Hammer ,IEC 60068-2-75 Test Eha: Pendulum hammer 0
