RS232 / RS485 Communication Switching AC Power Source 195 - 245V 340 - 420V
Product Details:
| Place of Origin: | DONGGUAN |
| Brand Name: | KINGPO |
| Certification: | iso9001 |
| Model Number: | APA2000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | 100*100*100CM |
|
Detail Information |
|||
| Power: | Electronic,Hydraulic | Warranty: | One Year |
|---|---|---|---|
| Weight: | 130kg | Product Name: | Valve Test Equipment,Electrical Safety Laboratory Testing Equipment |
| Power Supply: | 220V 50Hz | ||
| High Light: | 195V AC Power Source,245V AC Power Source,420V Switching Power Source |
||
Product Description

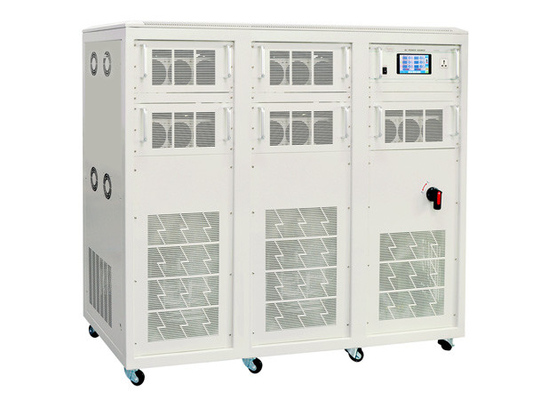

Switching Intelligent AC Power Source APA2000 Series
Product parameter
• Input voltage range: Single phase 195~245V
Three phase 340V~420V
• Input frequency range: 50/60Hz±5%
• Output voltage range: Single phase 0~300V (0~600V Match)
Three phase 0~520V (0~1040V Match)
• Output frequency range: 45~500Hz
• Waveform Distortion≤1% Load Regulation≤1% Frequency stability≤0.01%
simulate the test environment and power grid situation
High Performance
• The maximum capacity of single-phase power supply can reach 600 KVA;three-phase power supply can reach 2000 KVA
• High crest factor 3.5:1
• Fast response, suitable for special load. Low Distortion Interference, Complete Input/Output Isolation
• Terminal voltage feedback compensation function to ensure no error in test power
• Set the starting angle of waveform (0-359 degrees)and synchronous active signal interface
• Fast operation,accurate and fast measurement of power parameters
• A single chip computer (D/A circuit) is used to collect voltage and current waveform data directly. contains RS232 or RS485 interface, communicate with computer. Five groups of test groups can be set up on a single machine. Each group can set up 35 different test points (different voltage0~300V, frequency45~500Hz, time 0.1S~999.9Hand can do (0~999999) cycle test.
• The central processing unit is used to control the opening and closing of logic circuits. The one-to-one driving method is beneficial to disperse heat dissipation of power components and redundant design in structure.
• Voltage analogue (0~5V) or current analog (4~20mA) can be used to control power output.
• Perfect Protection Function: Overload, Over current, Temperature, Short Circuit, Under voltage Protection and Alarm
• Ultra-large 7-inch touch screen displays parameters: voltage, frequency, power, power factor, current, peak current, temperature, electric quantity, time, phase angle, impedance value and real-time curve of voltage and current.
APA2000 Single phase series
| Model | 2000 | 2001 | 2002 | 2003 | 2005 | 2010 | 2015 | 2020 |
|---|---|---|---|---|---|---|---|---|
| Output Capacity | 500VA | 1KVA | 2KVA | 3KVA | 5KVA | 10KVA | 15KVA | 20KVA |
| Input Power | 1Ø2W+G 110V/220V±10% | 3Ø4W+G 220V/380V±10% | ||||||
| 50/60Hz±5% | ||||||||
| Output Frequency | 50Hz 60Hz 47~63Hz (45~500Hz match) | |||||||
| Frequency stability | 0.01% | |||||||
| Output Voltage | 0~150V/0~300V | |||||||
| Output current | 4.2/2.1 | 8.4/4.2 | 16.8/8.4 | 25/12.5 | 42/21 | 84/42 | 126/63 | 168/84 |
| Load Regulation | ≤1% | |||||||
| Waveform Distortion | ≤1% (full load≤2%) | |||||||
| Meter Display | Touch screen display Voltage, frequency, power, power factor, current, peak current, temperature, electric quantity, time, phase angle,Impedance value and Real-time Curve of Voltage and Current | |||||||
| Protective Device | Overload, Overcurrent, Temperature, Short Circuit, Undervoltage Protection and Alarm | |||||||
| Weight(kg) | 20 | 25 | 30 | 35 | 45 | 100 | 115 | 130 |
| W*H*D(mm) | 425*89*480 | 430*200*500 | 430*490*700 | 430*580*700 | ||||
| Working condition | ambient temperature 0~40°C relative humidity10~90% | |||||||
APA2000S Three phase series
| Model | 2015S | 2020S | 2030S | 2045S | 2060S | 2075S | 2100S | 2120S |
|---|---|---|---|---|---|---|---|---|
| Output Capacity | 15KVA | 20KVA | 30KVA | 45KVA | 60KVA | 75KVA | 100KVA | 120KVA |
| Input power | 1Ø2W+G 220V±10% | 3Ø4W+G 220V/380V±10% 50/60Hz±5% | ||||||
| Output Frequency | 50Hz 60Hz 47~63Hz (45~500Hz match) | |||||||
| Frequency stability | 0.01% | |||||||
| Output Voltage | Phase voltage 0V~150V/0~ 300V Line voltage 0V~260V/0V~520V | |||||||
| Output current | 42/21 | 54/27 | 84/42 | 126/63 | 168/84 | 210/105 | 278/139 | 333/166 |
| Load Regulation | ≤1% | |||||||
| Waveform Distortion | ≤1%(full load≤2%) | |||||||
| Meter Display | Touch screen display Voltage, frequency, power, power factor, current, peak current, temperature, electric quantity, time, phase angle,Impedance value and Real-time Curve of Voltage and Current | |||||||
| Protective Device | Protection and alarm of short circuit, short voltage and short phase with overload, over current and over temperature | |||||||
| Weight(kg) | 210 | 240 | 360 | 450 | 540 | 600 | 780 | 850 |
| W*H*D(mm) | 510*780*710 | 430*200*500 | 750*1500*850 | 900*1780*950 | ||||
Customized Services
To fulfill the diversified needs for clients, we gain experience of research and achieve flexible production.
Standard Mastery
Extensive experiences of customized business and understanding of each standard.
Thorough Services
Serving with a grateful, professional and honorable attitude, we established our own independent service branch to provide you with long-term value adding services.
Experienced R&D Team
Extensive experiences of Research and Development for mechanics, electronics, optics, thermology, IT technology and customer services.
Overall Matching
Solutions provider for laboratories based on standards or functions required.
Company Profile
KINGPO company extensive research and development experiences regarding safety performance testing, electromechanical properties testing, fireproof and flame retardant performance testing, waterproof performance testing and life testing for the household electrical appliances, electronic and electrical products, electrical accessories, building components and materials, wire and cable, IT computer and communications, children's toys and textiles, power simulate load and capacitor and so on.
Also manufacture the testing equipment for all kind of products, sampling laboratory and line automatic detecting system.
With the nationally recognized testing instrumentation production license. More than 1000 kinds of products.
packaging & shipping
Packaging: Wooden Box
Shipping: ocean
Port: Shenzhen port or Customer's required
Payment & Delivery
Payment method: T/T, money Gram, Paypal, Western Union
Payment currency: USD, HKD, CNY
Delivery: 10-40 days received the deposit.
