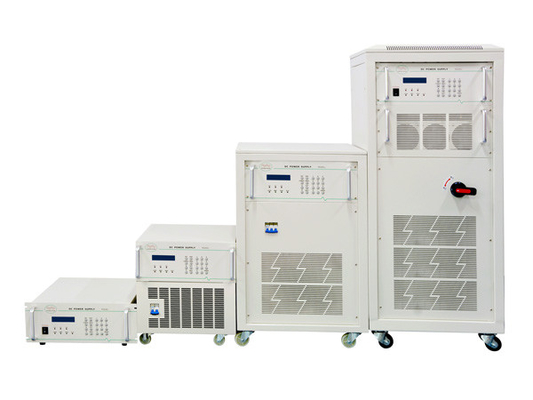

CC CV CP Mode DC Power Source With IGBT Fast Switch

CC CV CP Mode DC Power Source With IGBT Fast Switch
CC CV CP Mode DC Power Source With IGBT Fast Switch

Large Image :  CC CV CP Mode DC Power Source With IGBT Fast Switch

Product Details:
Place of Origin: DONGGUAN
Brand Name: KINGPO
Certification: iso9001
Model Number: APD1000
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: 100*100*100CM
Detailed Product Description
Power: Electronic,Hydraulic Warranty: One Year
Weight: 130kg Product Name: Valve Test Equipment,Electrical Safety Laboratory Testing Equipment
Power Supply: 220V 50Hz
High Light:

IGBT Fast Switch DC Power Source

,

CC CV CP DC Power Source

,

IGBT Fast Switch DC Power Supply

Switching Standard DC Power Source APD1000 Series



Product parameter

• Input voltage range:1Ø2W+G 110V/220V±10% 220V±10% 3Ø4W+G 220V/380V±10%
• CV(Constant Voltage) Mode
line regulation≦±0.02% ±6Count load regulation≦≤± 0.05% of full scale
Ripple&Noise≦0.1%RMS
• CC(Constant current) mode
line regulation≦±0.05% ±3Count load regulation≦≤± 0.15% of full scale
Ripple&Noise≦0.3%RMS
• CP (constant power) mode
line regulation≦±0.05% ±6Count load regulation≦≤± 1% of full scale
• Overvoltage setting range:0% ~110% of rated voltage
Overcurrent setting range:0% ~110% of rated current
• CV transient response time: 10ms(at Resistance load 10%~90%)
• Output climb rate: up 10 to 100% <30ms down <150ms



Product details

High Performance
• High power density. Small size, high efficiency and stable performance
• Three working modes: constant voltage, constant current and constant power, and can be automatically converted.
• The power supply is composed of IGBT fast switch, high frequency transformer and fast semiconductor.
• The control part adopts 32 bits high-speed single chip computer and large-scale FPGA circuit, which has fast response speed.
• Rich interface configuration, isolated RS232, RS485 and other interfaces as well as perfect command system, a variety of baud rate or address selection.
• It has the function of internal resistance simulation (selection) and power measurement (True Watt).
• Set data memory, automatic memory before shutdown
• It provides Ramp up and Ramp down functions.
• A group of test groups can execute 35 test points (different voltage0~800V, current0~1000A, time 0.1S-999.9H settings), and can do continuous cycle (99999999 times) testing
• Full digital design, 14Bit A/D and D/A settings and reading resolution.
• The remote voltage compensation can reach 5V, and the output is completely isolated from the municipal power supply.
• Real-time acquisition of power semiconductor temperature and intelligent heat dissipation design
• Programmable over-voltage, over-current, over-power protection, power semiconductor over-heat protection, reverse protection.
• LED / LCD display parameters: voltage, current, power and time

CC CV CP Mode DC Power Source With IGBT Fast Switch 0

Selection specification(APD1000 Series)

  0~30A 0~50A 0~100A 0~200A 0~400A 0~600A 0-1000A
0~30V 1030-30A 1030-50A 1030-100A 1030-200A 1030-400A 1030-600A 1030-1000A
0~40V 1040-30A 1040-50A 1040-100A 1040-200A 1040-400A 1040-600A 1040-1000A
0~60V 1060-30A 1060-50A 1060-100A 1060-200A 1060-400A 1060-600A 1060-1000A
0~80V 1080-30A 1080-50A 1080-100A 1080-200A 1080-400A 1080-600A 1080-1000A
0~100V 1100-30A 1100-50A 1100-100A 1100-200A 1100-400A 1100-600A 1100-1000A
0~120V 1120-30A 1120-50A 1120-100A 1120-200A 1120-400A 1120-600A 1120-1000A
0~160V 1160-30A 1160-50A 1160-100A 1160-200A 1160-400A 1160-600A 1160-1000A
0~240V 1240-30A 1240-50A 1240-100A 1240-200A 1240-400A 1240-600A 1240-1000A
0~330V 1330-30A 1330-50A 1330-100A 1330-200A 1330-400A 1330-600A 1330-1000A
0~600V 1600-30A 1600-50A 1600-100A 1600-200A 1600-400A 1600-600A 1600-1000A
0~1000V 11000-30A 11000-50A 11000-100A 11000-200A 11000-400A 11000-600A 11000-1000A

Note appended:
1. Power calculation method:Voltage V × Current I =Power W
2. Customized minimum power of the power supply 500W
Welcome to special specifications

Customized Services
To fulfill the diversified needs for clients, we gain experience of research and achieve flexible production.
Standard Mastery
Extensive experiences of customized business and understanding of each standard.
Thorough Services
Serving with a grateful, professional and honorable attitude, we established our own independent service branch to provide you with long-term value adding services.
Experienced R&D Team
Extensive experiences of Research and Development for mechanics, electronics, optics, thermology, IT technology and customer services.
Overall Matching
Solutions provider for laboratories based on standards or functions required.
Company Profile
KINGPO company extensive research and development experiences regarding safety performance testing, electromechanical properties testing, fireproof and flame retardant performance testing, waterproof performance testing and life testing for the household electrical appliances, electronic and electrical products, electrical accessories, building components and materials, wire and cable, IT computer and communications, children's toys and textiles, power simulate load and capacitor and so on.
Also manufacture the testing equipment for all kind of products, sampling laboratory and line automatic detecting system.
With the nationally recognized testing instrumentation production license. More than 1000 kinds of products.
packaging & shipping
Packaging: Wooden Box
Shipping: ocean
Port: Shenzhen port or Customer's required
Payment & Delivery
Payment method: T/T, money Gram, Paypal, Western Union
Payment currency: USD, HKD, CNY
Delivery: 10-40 days received the deposit.
