6 Stations IEC 60884-1 Figure 44 Plug Pins Temperature Rise Test Apparatus

Product Details:

Place of Origin: China
Brand Name: Kingpo
Certification: Calibration Certificate
Model Number: KP-WS302

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: To be Quoted
Packaging Details: safety carton pack or plywood box
Delivery Time: 35 working days
Payment Terms: T/T
Supply Ability: 1000 sets per month
Contact Now

Detail Information

Standard: IEC60884-1 Fig 44 Clause 19 Working Station: 6
Testing Current: 0-125A Testing Voltage: <12V
Temperature Measurement Table: 0-150°digital Display Test Object: Plug Pins

Product Description

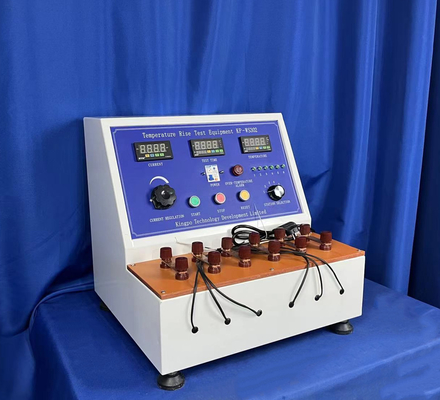

6 Stations IEC 60884-1 Figure 44 Plug Pins Temperature Rise Test Apparatus



Product Introduction



This device is in accordance with IEC60884-1 Fig 44 Clause 19 of the temperature rise to design and manufacture, it is mainly used to test the plug device and its accessories around, such as dimmers, fuses, switches, power regulators, etc., and it cannot reach excessive temperatures during normal use. This device adopts a high-precision digital meter, sensor signal input with 6 work stations, over-temperature and overload protection with voice prompts, strong applicability and stable performance.



Technical Parameters





Item Name KP-WS302
Working station 6
Testing current 0-125A
Testing voltage <12V
Timer 0-9999s is adjustable, digital display
Temperature measurement table 0-150°digital display
Power supply 220V,50HZ (can be customed)
standard IEC60884-1
Test object Plug Pins,connector





Sample installation:



There are totally six groups of sample connecting terminals, remove the copper piece on the terminals, make both ends of the test sample are connected with the connecting wires, adhere the temperature measurement wire on the test sample, and then fix the connecting wires to the corresponding terminals.



6 Stations IEC 60884-1 Figure 44 Plug Pins Temperature Rise Test Apparatus 0
