| MOQ: | 1 |
| Price: | To be quoted |
| Standard Packaging: | safety carton pack or plywood box. |
| Delivery Period: | 25 working days |
| Payment Method: | T/T |
| Supply Capacity: | 3 sets per month |

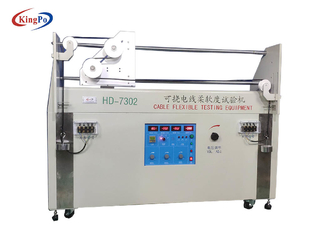

UL 1581 / IEC 60227-2 / IEC 60245-2 Flexible Cable Testing Equipment
1.1 Main purpose
This instrument is mainly used to test the mechanical strength of finished flexible cables. It is suitable for places: quality control, laboratories, etc.During the test, the flexible wire is wound on the trolley of the machine, the two ends are fixed with weights, and a certain current is passed according to the standard.During the test, the travel distance of the trolley is 1 m, and the speed is about 0.33 m/s and 0.1 m/s can be switched. When the wire has one of the failure judgment conditions in the performance parameter table during the test,or when the specified number of tests is reached, the car will automatically stop. This machine adopts stepless adjustment method (range: 2～40A) for the regulation of the energizing current of the wires, and can adjust the voltage between the wires from AC 0～380V.
1.2 Design standards
This instrument is designed according to GB5013.1-1997, GB5013.2-1997, GB5023.2, UL 1581, IEC 60227.2, IEC 60245-2, DIN VDE 0281, DIN VDE 0282 and other standards.
1.3 Technical parameters
| No. | Item | Specifications |
| 1 | Input power | AC 380V±10%, 50HZ, three-phase four-wire system power supply |
| 2 | Leakage switch | 3P, 32A, with protection |
| 3 | Output Power | 3500W |
| 4 | Motor Power | AC 120W/220V |
| 5 | Trolley speed | 0.33m/s (two rounds of torsion), 0.1m/s (three rounds of torsion) |
| 6 | Trolley itinerary | 1 meter |
| 7 | Test voltage | Single phase, AC 0～220V continuously adjustable, 50HZ |
| 8 | Test current | Three-phase, AC 0～380V continuously adjustable, 50HZ |
| 9 | Testing frequency | 2～40A adjustable |
| 10 | Pulley diameter | 0～999999 times (can be preset) |
| 11 | Weight | Ordinary two-wheel bending: Ф60, Ф80, Ф120, Ф160, Ф200 |
| 12 | Failure judgment | 0.5KG, 1KG, 2KG, 3KG, 7KG, 14KG, 21N, 28N |
| 13 | Qualified judgment | 1. The test line is disconnected; 2． Short circuit between test leads; |
| 14 | volume | 3. The test lead is shorted to ground. |
| 15 | weight | When the line to be tested reaches the set number of tests, the machine stops working. |
