IEC60529 IPX8 Ingress Protection Test Equipment For Pressure Immersion
Product Details:
| Place of Origin: | China |
| Brand Name: | KingPo |
| Certification: | Calibration Certificate |
| Model Number: | KP-IPX8B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | To be quoted |
| Packaging Details: | safety carton pack or plywood box |
| Delivery Time: | 30 working days |
| Payment Terms: | T/T |
| Supply Ability: | 3 sets per month |
|
Detail Information |
|||
| Inner Size: | φ500 X H500mm (customizable) | Outer Size: | 1000x780x1300mm |
|---|---|---|---|
| Wall Thickness: | 3mm | Range Of Test Depth: | 0-30m |
| Range Of Test Pressure: | 0-0.3Mpa | Vent Pressure Of Safety Valve: | 0.35Mpa |
| High Light: | Immersion Ingress Protection Test Equipment,IPX8 Ingress Protection Test Equipment,IEC60529 Water Ingress Testing Equipment |
||
Product Description

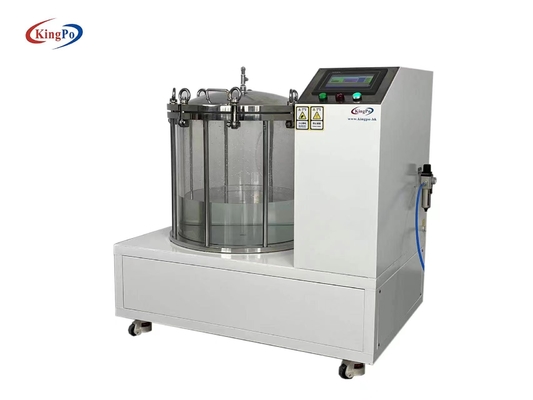

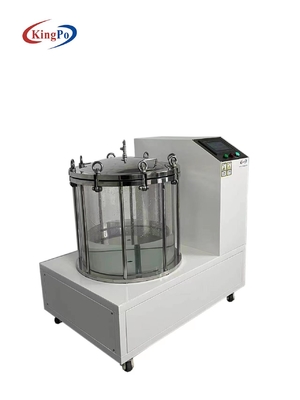

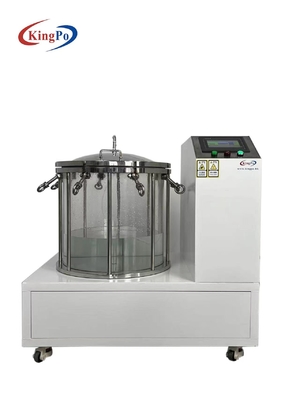

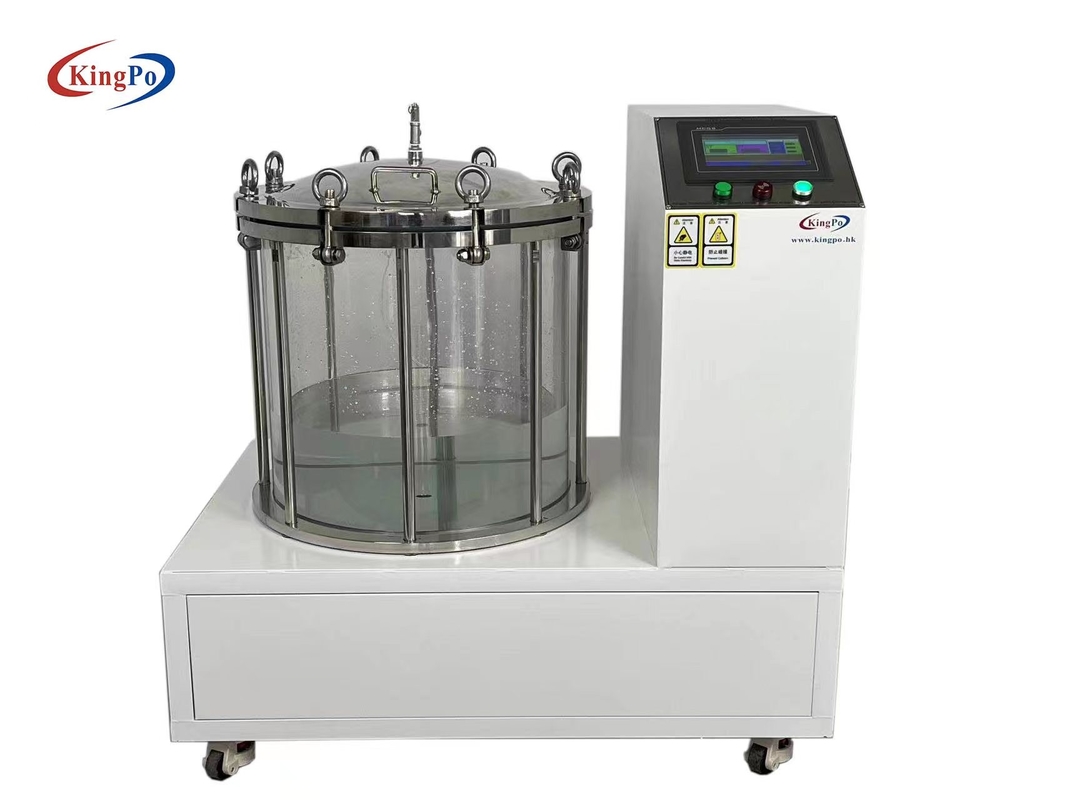

IEC60529 IPX8 Ingress Protection Test Equipment Pressure Immersion Test Device
Standard:IEC60529 degree of protection provided by enclosures (IP Code) of the IPX8, IEC60884-1, IEC60335-1, IEC60598-1.
Application:It is used for the testing of IPX8. Under the device with shell protection grade (IP code) based mainly for electronic and electrical products, outdoor lighting, electric cabinet, communication equipment, diving equipment and other products to simulate the water environment to test the protective performance of IP products. The test result are used to determine whether the requirements are met, so as to provide the design, development, optimization and ex factory inspection of the product.
Testing principle: The air pressure is applied to make the compressed air generate pressure on the water body, so as to simulate the corresponding water depth environment.
Features:
1. Applicable to the IPX8 waterproof rating test of the product.
2. The tank body is made of 304 stainless steel material, high-precision overall sub-arc welding, good pressure bearing.
3. The outside is a square structure, welded by stainless steel plate, user-friendly design: 45 ° bevel method, button operation; the lid height is moderate, easy to operate.
4. Full transparent flange cover, convenient to test the water in the sample, 20mm thick tempered glass is durable.
5. The top cover of the equipment is fixed with 8 sets of ring screws (distribution auxiliary steel bars).
6. The equipment is equipped with a safety valve. After the rated pressure is exceeded, the pressure is automatically released to prevent the operator from operating improperly and the set pressure is too high.
7. The electronic control components using imported brands (such as: LG, Panasonic, Omron, etc.); pneumatic components using Taiwan's original AirTac, to ensure the stability of the use of equipment and service life.
8. The test time can be set to: 0-999 minutes. When the test time is reached, the pressure can be automatically stopped, and the air inside the tank can be automatically drained. The tester can open the can lid and take out the test sample.
9. Pressure display: The digital pressure gauge is used to automatically control the test pressure inside the tank.
10. The base of the equipment is equipped with 4 movable brake casters for easy movement and fixing.
Parameters:
| Model | KP-IPX8B |
| Inner size | φ500 x H500mm (customizable) |
| Outer size | 1000x780x1300mm |
| Wall thickness | 3mm |
| Flange thickness | 20mm |
| Range of test depth | 0-30m |
| Range of test pressure | 0-0.3Mpa |
| Vent pressure of safety valve | 0.35Mpa |
| Pressure control mode | Automatic control by pressure sensor |
| Pressure display mode | Pressure sensor |
| Pressure setting accuracy | 0.001Mpa |
| Test time | 0-999mim |
| Power | AC220V, 50Hz, 100w (customizable) |
| Protector | Leakage protection, short circuit protection, water shortage protection |
Touch screen operation page
