| MOQ: | 1 |
| Price: | to be quoted |
| Standard Packaging: | plywood box |
| Delivery Period: | 20 working days |
| Payment Method: | T/T |
| Supply Capacity: | 10 units per month |

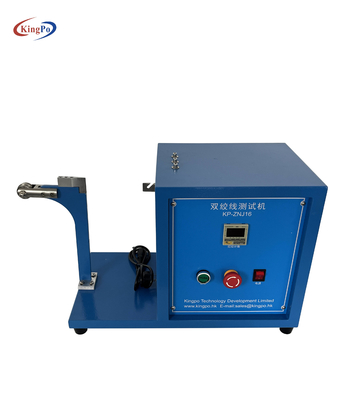

IEC 60851-5 Double Twisting Tester breakdown voltage tester auxiliary equipment
1.Overview
Automatic twisting machine is based on GB/T4074.5-2008, IEC 60851-5 standards and design of a breakdown voltage tester auxiliary equipment, the twisting machine is mainly used as a breakdown voltage tester - twisting method of test sample preparation, use range: Ф (0.1 ~ 2.5) mm.
The twisting machine is mainly used as a breakdown voltage tester - twisting method test sample preparation, the use of range: Ф (0.1 ~ 2.5) mm.
2.technical parameters
2.1 Twisting range: Ф (0.1 ~ 2.5) mm;
2.2 Twisting speed: 100±10r/min;
2.3 Digital display: 0 ~ 9999;
2.4 Power supply voltage: 220V±10%, 50Hz;
2.5 Load weight: 0.85N, 1.7N, 3.4N, 7N, 13.5N, 27N, 54N, 108N.
2.6 Overall dimensions: W×D×H 650×280×370mm;
2.7 Net weight about: 25kg
3.working principle
This twisting machine is directly dragged by an AC permanent magnet low-speed synchronous motor, the twisting head hooks one end of the specimen to rotate at 100r/mm, and the other end of the specimen rotates at 100r/mm. 100r/mm speed rotation, the other end by the oblique block separation, and then through the guide wheel after the two wire head merge hanging weights, so that the specimen to form a twist. When the number of twisted to reach the preset number, twisting machine automatically stop twisting.
video
|
|
