Iec 61010-2-010 Loaded Vessel Dynamic Test Of Horizontal Heating Surfaces Of Glass Or Ceramic Material
Product Details:
| Place of Origin: | China |
| Brand Name: | KingPo |
| Certification: | Calibration Certificate (ISO17025) |
| Model Number: | IEC 61010-2-010-cl.8.2.101 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | To be quoted |
| Packaging Details: | safety carton pack or plywood box |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Brand: | KingPo | Material: | Aluminium |
|---|---|---|---|
| Diameter: | φ120 Mm ± 10 Mm | Standard: | IEC 61010-2-010-cl.8.2.101 |
| Vessel Mass: | 0.48kg | Sand Mass: | 1.32kg |
| Sand+vessel Mass: | 1.8± 0.01 Kg | Edges: | R10mm Min |
| High Light: | glass loaded vessel dynamic test,ceramic loaded vessel dynamic test |
||
Product Description
IEC 61010-2-010 Safety requirements for electrical equipment for measurement, control and laboratory use –
Part 2-010: Particular requirements for laboratory equipment for the heating of materials
Dynamic test of horizontal heating surfaces of glass or ceramic material
The heater is operated at the maximum setting until the surface temperature of the heating
zone does not rise by more than 1 °C in 15 min. The heater is then switched off, and a
loaded vessel is dropped flat 10 times from a height of 150 mm onto the heating zone.

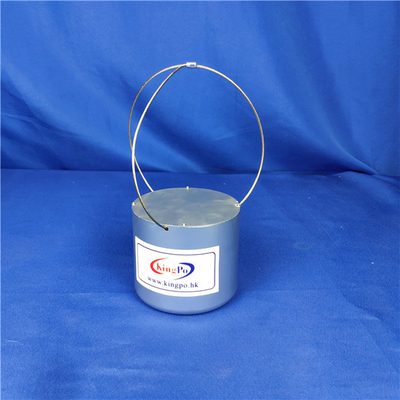

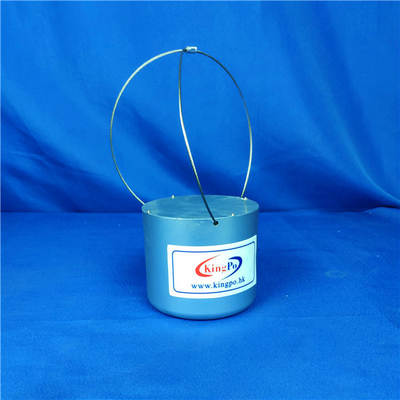

The loaded vessel has a copper or aluminium base which is flat over a diameter of
120 mm ± 10 mm, with a rounded edge having a radius of at least 10 mm. It is filled to a
uniform height with sand or shot to give a total mass of 1,8 kg ± 0,01 kg
