ITU-T Rec P 51 Mouth Simulator Accurate Repeatable Electroacoustic Measurements

Product Details:

Place of Origin: DONGGUAN
Brand Name: audiobus
Certification: ISO9001
Model Number: 55254

Payment & Shipping Terms:

Minimum Order Quantity: 1
Contact Now

Detail Information
Function: Testing Maintenance: Easy/Difficult
Safety Features: Overload/Short Circuit Protection Warranty: Yes/
High Light:

ITU-T Rec P 51 Mouth Simulator

,

Short Circuit Protection Mouth Simulator

Product Description

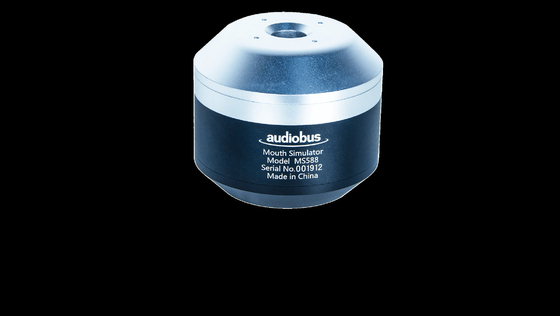

MOUTH SIMULATOR
Mouth Simulator are high-performance artificial mouths conforming to ITU-T Rec. P.51 and delivers highly accurate and repeatable electroacoustic measurements.

MOUTH SIMULATOR are designed to test telephone transmitters, smart speakers, and other microphones where a sound field similar to the human voice field is required.

The Mouth Simulator also provides a reference source for near field testing of handsets and microphone based devices, in smart devices. The artificial mouth simulator closely replicate the sound field generated by the human mouth, as specified in IEEE 269 and
ITU-T Rec P.51 - fulfilled by both MOUTH SIMULATOR.
USE SCENARIOS
Quality control testing of frequency response and distortion of telephone transmitters and close-talking microphones
A sound source for acoustic measurements
Testing of smart devices, phones, speakers, etc
Provision exists for fitting a microphone at the mouth opening, for use in a compressor loop to give constant sound pressure output. Accurate calibration is facilitated by a calibration jig provided with this product.ITU-T Rec P 51 Mouth Simulator Accurate Repeatable Electroacoustic Measurements 0ITU-T Rec P 51 Mouth Simulator Accurate Repeatable Electroacoustic Measurements 1

qualification
meet a criterion IEEE269,661; ITU-T P.51

The software leveling the sound pressure level

(Sweep frequency measurement)

94 dB (100-20000 Hz),

110 dB (100-10000 Hz)

80 dB (100-31500 Hz)
Open diameter Φ20 mm
acoustic source 8 Ω/40 W
The diameter of the mouth ring Φ 40mm
Head ring pillar height 10mm
Enter the connector BNC
Install thread 3 / 8 ", the standard thread
External size Φ 100mm; 85mm
net weight 0.9kg
working temperature -10 ~ 50゜C
