| MOQ: | 1 |
| Price: | To be quoted |
| Standard Packaging: | safety carton pack or plywood box |
| Delivery Period: | 5 working days |
| Payment Method: | T/T |
| Supply Capacity: | 50 units per month |

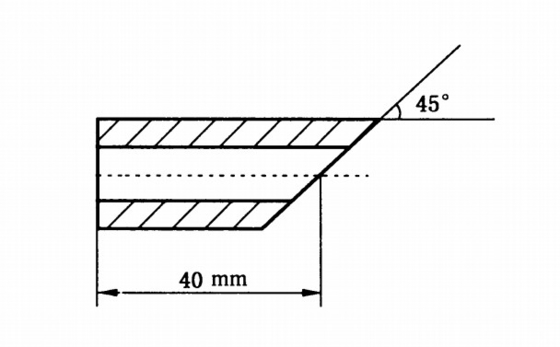

ISO 80601-2-70 figure 21.101 standard resistance
Key
D is the internal diameter: (4 ± 0,1) mm
L is the length: (40 ± 1) mm
A is the angle (45 ± 1) °
Break all edges with 0,15 mm to 0,20 mm radius or 45° chamfer. Drawing is not to scale.

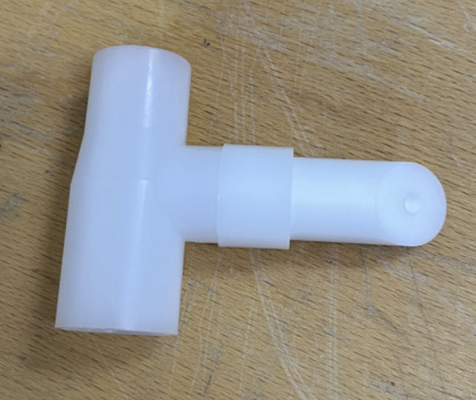

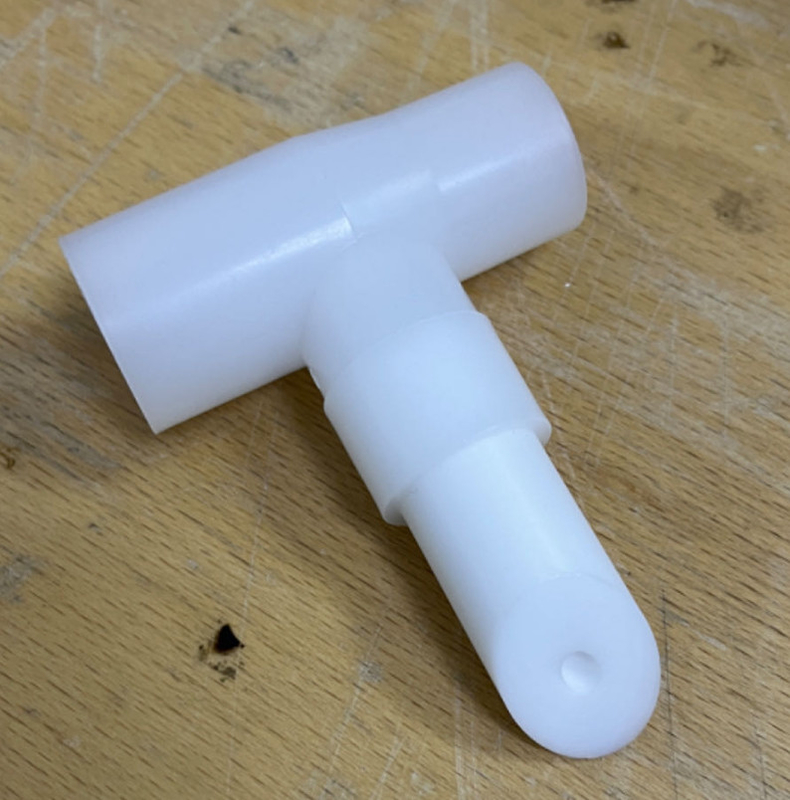

Connector: 15/22mm standard connector can be made according to customer requirements
