| MOQ: | 1 |
| Price: | To be quoted |
| Standard Packaging: | safety carton pack or plywood box |
| Delivery Period: | 30 working days |
| Payment Method: | T/T |
| Supply Capacity: | 30 units per month |
Human body mass distribution for a 135 kg patient and body part -figure AA.1 of IEC 60601-2-46
Subclause 201 .9.4.2.2 – Instability excluding transport position
Human bodies do not gain mass at the same rate in all body parts, thus IEC 60601 -1 :2005,Figure A.1 9, is not representative for morbidly obese PATIENTS . Figure AA.1 , in combination with Table AA.1 , is recommended for use for higher mass PATIENTS . Figure AA.1 represents a 135 kg "baseline" PATIENT mass. For SAFE WORKING LOADS greater than 1 35 kg, the additional mass should be added to each body part in the proportions given in Table AA.1 .

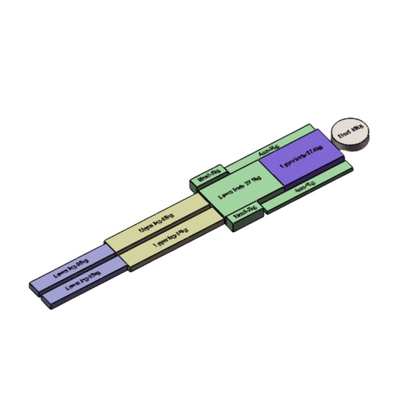

Figure AA.1 contains an example of human body mass distribution for a 1 35 kg PATIENT and body part labels for use in conjunction with Table AA.1
Figure AA.1 – Recommended distribution of mass in excess of 135 kg and examples of application .

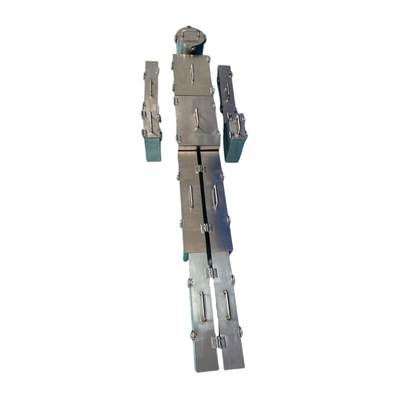

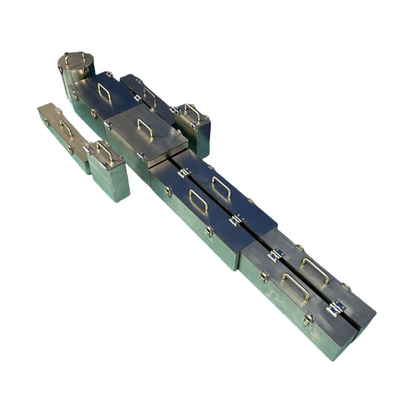

1. We can make a container and put steel balls in it to adjust the weight.
2. The container has a lid
video
video
|
|
| MOQ: | 1 |
| Price: | To be quoted |
| Standard Packaging: | safety carton pack or plywood box |
| Delivery Period: | 30 working days |
| Payment Method: | T/T |
| Supply Capacity: | 30 units per month |
Human body mass distribution for a 135 kg patient and body part -figure AA.1 of IEC 60601-2-46
Subclause 201 .9.4.2.2 – Instability excluding transport position
Human bodies do not gain mass at the same rate in all body parts, thus IEC 60601 -1 :2005,Figure A.1 9, is not representative for morbidly obese PATIENTS . Figure AA.1 , in combination with Table AA.1 , is recommended for use for higher mass PATIENTS . Figure AA.1 represents a 135 kg "baseline" PATIENT mass. For SAFE WORKING LOADS greater than 1 35 kg, the additional mass should be added to each body part in the proportions given in Table AA.1 .
Figure AA.1 contains an example of human body mass distribution for a 1 35 kg PATIENT and body part labels for use in conjunction with Table AA.1
Figure AA.1 – Recommended distribution of mass in excess of 135 kg and examples of application .
1. We can make a container and put steel balls in it to adjust the weight.
2. The container has a lid
