IEC 60601-2-2 Testing device for neutral electrodes

MOQ: 1
Price: 30000
Standard Packaging: 1000*1000*1000CM
Delivery Period: 25 working days
Payment Method: L/C,T/T
Supply Capacity: 100
Detail Information
Product Description
Detail Information
Place of Origin
china
Brand Name
kingpo
Certification
iso9001 ce
Model Number
ZRL320
Highlight:

Neutral Electrodes Testing Device

,

Testing Device For Neutral Electrodes

Product Description

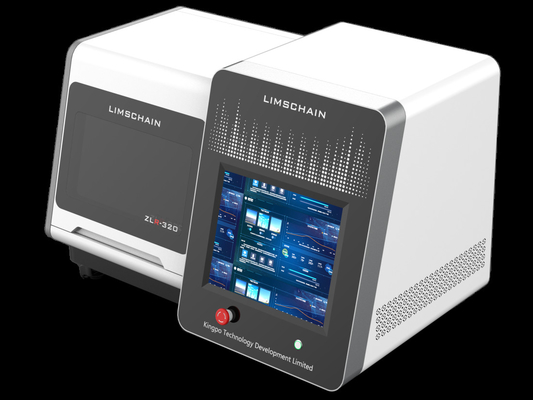

ZLR-320 Neutral Electrode Temperature Rise Tester
This device is designed according to the standard IEC60601-2-2:2017 and the Chinese national standard GB9706.202-2021 regarding the temperature rise characteristics requirements and testing methods for neutral electrodes (NE) in high-frequency surgical equipment. It can fully meet the testing requirements of standard 201.15.101.5 "Thermal performance of neutral electrodes".
According to the relevant requirements and corresponding test results for replacing volunteer testing in the standard, this testing device is designed to replace volunteer testing experiments, and the relevant test results can be considered consistent with real person testing.
(1) Test parameters
Temperature measurement board size (gold-plated testing area)
12 cm x 22 cm
Spatial resolution of temperature measurement board
1 cm²
Number of temperature sensor arrays
16 x26
The size of the temperature sensor array (standard requires temperature sensors to be deployed 2cm at each edge of the temperature measurement board)
16x26=416 sensor, (IEC 60601-2-2:+1cm)
Adjustable effective value of high-frequency current
(The neutral electrodes for adults/children and infants are respectively)
700mA/500mA/350mA
Test load time standard (optional)
60 s (10s.300s)
Tested skin adipose tissue thickness
20mm/15mm/10mm/5mm
Temperature measurement speed after high-frequency current load
Complete all temperature measurements within 1 second (IEC60601-2-2: Temperature testing is required to be completed within 15 seconds)
Relative temperature measurement accuracy of temperature measurement system
0.4 ℃ (IEC 60601-2-2 requires that the error of the temperature testing system be less than 0.5 ℃)
CQM simulation testing of contact impedance quality
2Ω.~ 100 Ω, (=100%) according to CQM system test results
measurement accuracy
±(3%+3 Ohm)
The measurable range of relative increase/decrease in CQM impedance, in ohms; Until the alarm zone is reached (impedance increases to 130%~140%)
00%…160% <100Ω
(IEC 60601-2-2:§201.8.4.101)
Environmental chamber temperature
RT+5°C
Operation interface
Chinese English interface
Interface
Provide API interfaces for LIMS integration
(2) Equipment electrical specifications
Overall dimensions (width x height x depth)
1040X640X640 mm
Weight of the entire machine (including the main unit, measuring table, and cables)
66 kg
Equipment power input:
220V AC,50 Hz
Rated power @ 700 mA high-frequency current (at maximum current)
0,5 A @220 V, AC

Other devices
Integrated computer embedded in the whole machine
Windows 10 operating system, monitor resolution
Usage environment
23±2℃. The initial temperature of the neutral electrode and the test surface should be 23 ℃± 2 ℃
Storage environment
0~50℃,10R. H.~90%R.H.
