IEC 60335-1 Oxygen Bomb Air Bomb Aging Test Chamber For Household Appliances
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | KINGPO |
| Certification: | iso9001 |
| Model Number: | KP6551 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 7000 |
| Packaging Details: | 1000*1000*1000MM |
| Delivery Time: | 30 |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Steel Disc: | Diameter 300mm, Thickness 5mm | Usage: | Vacuum Cleaners Test Equipment |
|---|---|---|---|
| Test Bench: | Test Bench: Size | Drive: | Motor Driven |
| Laboratory Door: | H× W: 2200mm × 1200mm | Sheet Copper Thickness: | 1mm |
| Temperature Test Range: | -50℃~1300℃ | Configured Mass: | 0.3KG,0.4KG, 0.7KG, 0.9KG, 1.4KG, 2.0KG |
| Controller: | Single Chip And Push Button | Accuracy: | ±1% |
Product Description
Product Description

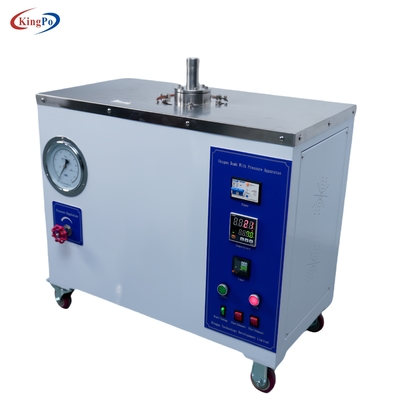

IEC 60335-1 Oxygen Bomb (Air Bomb) Aging Test Chamber For Household Appliances
Product Introduction For Air/Oxygen Bomb Test Apparatus:
Standard:Conforms to IEC 60811-412, IEC60335-1:2004 clause 22.32, IS: 9968 (Part 1 & 2), IS: 6380, IS: 10810-16, etc.
Application:It is applicable for the aging test of the electric wire, the insulation layer and sheath of the rubber (plastic, artificial leather) as well as other high polymer materials under the action of required pressure and temperature in the medium of oxygen and compressed air.
Structural principles:Adopt inner and outer box structure,sample suspended in oxygen tank,purity of oxygen supplied no less than 97%,pressure to 2.1±0.07 MPa ,temperature maintained at 70°±1°±C, aging test for 96hours in this state.
Test Principle: Adopts the servo motor to drive the turntable, to make the specimen to swing left and right, the test will be automatically stopped when the test cycles reach the preset value.
Technical Parameters For Air/Oxygen Bomb Test Apparatus:
| Test station | Single |
| Use Environment | Power supply:AC220V±10%/50-60Hz,compressed air 5~7kg/cm2,0.5KW |
| Technical Parameters | 1. Power supply voltage: 220V (AC) ± 10% 2. Maximum working pressure: 2.5MP 3. Safe bursting pressure: 2.7~3.3MP 4. Temperature automatic control range: room temperature 0~200 °C 5. Box size: 560×420×670mm 6. Tank volume: 4000cm3 7. Heater power: 2.4KW 8. Temperature alarm: 0~200°C adjustable 9. Temperature deviation: ±0.5 °C 10. Temperature control: digital display 11. Temperature control: intelligent control 12. Tank material: stainless steel inside, electrostatic spraying of cold-rolled steel plate outside 13. Tank size: diameter 123× height 337mm |
| Precautions |
6.1 Connect the power supply of the instrument according to the requirements. 6.2 All power should be cut off when not working 6.3 Please ensure that the equipment is grounded 6.4 The instrument is forbidden to be stored in areas with the following conditions: ※ Inflammable and explosive air environment. ※ Unstable work surface. ※ A place exposed to direct sunlight. ※ A humid place. ※ Corrosive air environment. |
