| MOQ: | 1 |
| Price: | 7000 |
| Payment Method: | T/T |
| Attribute | Value |
|---|---|
| Accuracy | ±0.5% |
| Operating Voltage | AC220V ± 10% 50HZ |

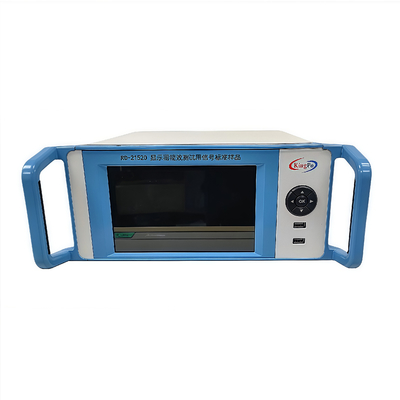

The 8K signal generator is a specialized video signal source designed specifically for display energy efficiency testing. It meets the testing requirements outlined in GB 21520-2023, which specifies the limits and levels of display energy efficiency. This source covers all test signals specified in the standard and features multiple interfaces, high resolution, and a high refresh rate. It can provide standardized video test signals for the energy efficiency testing of various displays.
| Applied Code | GB 21520-2023 Energy Efficiency Limiting Values and Energy Efficiency Grades for Displays |
| Video Interface | HDMI, DP, DVI, USB-C, VGA |
| Pixel Format | 8bit RGB444 Full Range, 8bit RGB444 Narrow Range, 8bit YUV422 Narrow Range, 10bit RGB444 Full Range, 10bit RGB444 Narrow Range, 10bit YUV422 Narrow Range |
| Color Gamut Space | ITU-R BT.601, ITU-R BT.709, ITU-R BT.2020 |
| Brightness Range | SDR, HDR |
| Test Signal |
|
| HDMI | HDMI2.1 backward compatible, supports FRL/TMDS mode, up to 8K@60Hz, 4K@160Hz |
| DP | DP-1.4 standard, forward compatible, up to 8K@30Hz, 4K@60HZ, 2K@144Hz |
| USB-C | Supports up to 8K@30Hz, 4K@60Hz, 2K@144Hz |
| DVI | Supports up to 2560x1600 30Hz, 1920x1200 60Hz |
| VGA | Supports up to 2560x1600 25Hz, 1920x1200 60Hz |
