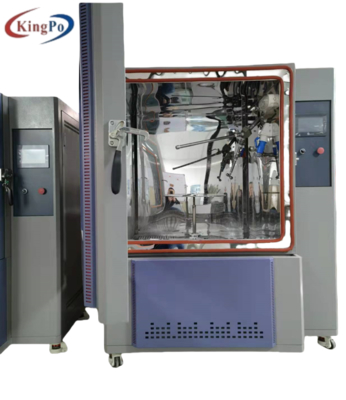

GT1310M Japanese Standard Waterproof Testing Machine

This waterproof testing equipment is designed and manufactured based on the four test types (R1, R2, S1, S2) specified in the JIS D 0203-1994 standard "Test Methods for Moisture and Water Resistance of Automotive Parts." It is suitable for conducting moisture and water resistance tests on automotive components.

This equipment adopts a stainless steel water pump for water supply, with the water supply volume controlled through a closed-loop system comprising flow sensor, pressure sensor, PLC, and frequency inverter. The flow sensor feeds real-time flow rate and pressure values back to the PLC, which calculates and adjusts the inverter's operating frequency. The inverter then regulates the pump's rotational speed to achieve the desired output flow rate, ensuring the test's specified flow value is met. The rotational motion is driven by a Panasonic servo motor coupled with a gear reducer.

Technical Specifications:

• Test water temperature: room temperature
• Working chamber dimensions: 1000X1000X1000mm
• Built-in perforated steel turntable, load capacity 50 kg
• Chassis structure: the unit features an SUS304 stainless steel inner chamber with a powder-coated sheet metal exterior enclosure.
• Equipped with a glass observation window for clear monitoring of test sample changes.
• drainage ports, compliant with Figure R1 and R2 requirements.
• 40 water spray nozzles, compliant with Figures S1and S2 requirements.
• The rotating shaft of the water supply pipe forms a 45º angle with the horizontal line.
• Rotational speed of the water supply pipe shaft: 23r/min
• Rotational speed of the sample stage: 17r/ min
• Water spray flow rate: R11.9L/min; R2 3.2L/min; S1 24.5L/min; S2 39.2L/min
• Water spray pressure: R1 0.01Mpa; R2 0.03Mpa; S1 0.10Mpa; S2 0.30Mpa
• Test duration: programmable from 0 to 9999 minutes 99 seconds
• Distance between spray nozzle and sample: 400mm
• Control

Frequency-conversion auto-regulation mode: the PLC program controls the variable frequency drive frequency to adjust pump speed, achieving preset flow and pressure values. All data is transmitted via transducers and displayed on the control panel.

Setting method: Chinese menu interface with 7-inch color touchscreen input

Display function: shows pressure, flow rate, rotational speed, test duration, etc.
Protection functions: earth leakage protection, overload protection, short-circuit protection
Rotary control of water supply pipe shaft: Panasonic servo motor + gear reducer
Rotating stage rotation control: stepper motor + gear reducer
Stainless steel multi-stage centrifugal pump for water supply

• Equipment power supply: 380V 50Hz 3kw
• Overall dimensions (width x depth x height): approximately 1480 x 1250 x 1820m.
