Sample and restrictions: Switches for controlling self-ballasted lamps.
Used to test the load switching capacity of switches for controlling self-ballasted lamps.
Switches used to control self-ballasted lamps should withstand the electrical and thermal stresses that occur when controlling LED circuits without excessive damage or other harmful effects. The purpose is to assess:

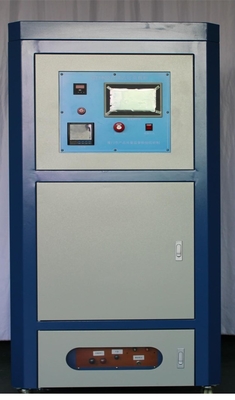

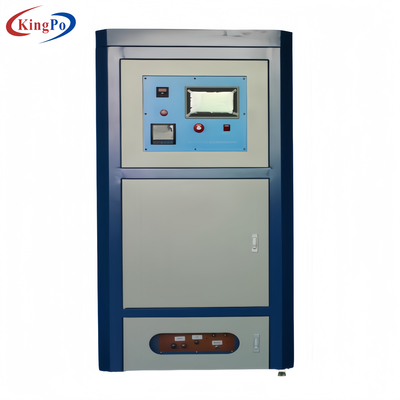

The load cabinet adopts an integral steel structure frame and Toyota white sealing plate. At the top of the front is the operation control panel containing:
There are terminals under the cabinet, which are connected to the products in the testing machine through wires to output current and provide load during the testing process.
| Test station | 3 stations, independent output |
| Electrical control method | Touch screen + button control, instrument display |
| Digital voltage value | Range 0-300V, accuracy 0.5 |
| Digital power value | Range 0-9KW, accuracy 0.5 |
| Output voltage | 0-280V adjustable, ensure the test voltage is 250V |

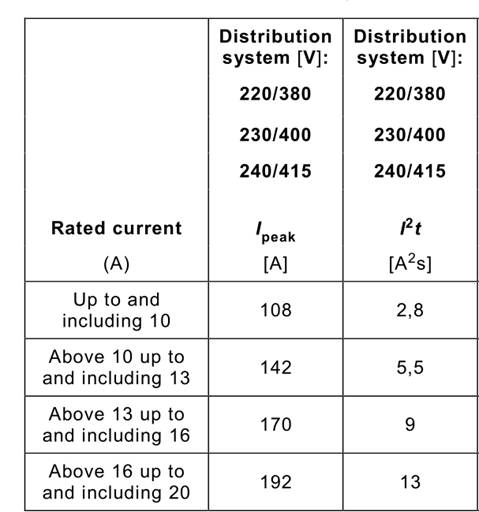

| Preset switch rated voltage | Each channel is 250V, with four optional rated currents: 10A, 13A, 16A, and 20A |
| Measurement function | Each set of equipment includes a closing control device for measurement verification |
| Protection function | With long-off/long-on function, preset protection time from 1 to 99 seconds |
|
|
