UL 50E Dust tester
  • name
  • name

UL 50E Dust tester

MOQ: 1
Price: To be quoted
Standard Packaging: safety carton pack or plywood box
Delivery Period: 25 working days
Payment Method: T/T
Supply Capacity: 3-5 sets per month
Detail Information
Product Description
Detail Information
Place of Origin
china
Brand Name
kingpo
Certification
ISO 17025
Model Number
KP-UL50E8
Highlight:

UL 50E dust test equipment

,

IP testing dust chamber

,

dustproof testing device with warranty

Product Description

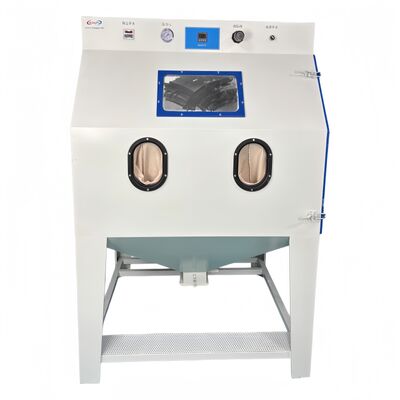

UL 50E Dust Tester
Professional dust testing equipment designed to meet rigorous industrial standards for enclosure protection testing.
UL 50E Dust tester 0
Product Overview
Meets the requirements of Clause 8.4.1.1 of UL50E-2020 standard for dust testing.
Technical Specifications
Complies with Clause 8.4.1.1 of UL50E-2020 with the following main parameters:
  • Sand blast gun, suction type with air ejector diameter of 4.7mm and nozzle diameter of 9.5mm
  • Spray pressure: 620-690kPa
  • Integrated pipe balance box for measuring internal and external pressures
  • Square screen with wire diameter of 50μm and wire gap of 75μm
  • Nozzle to shell distance: 305-380mm
  • Slaked lime powder usage controlled at 2.27kg/min with automatic recycling within the test chamber
  • Inner chamber volume: 1000×1000×1000mm
  • Includes 50kg of dry slaked lime powder
UL 50E Dust tester 1 UL 50E Dust tester 2 UL 50E Dust tester 3
