| MOQ: | 1 |
| Price: | To be quoted |
| Standard Packaging: | safety carton pack or plywood box |
| Delivery Period: | 25 working days |
| Payment Method: | T/T |
| Supply Capacity: | 3-5 sets per month |

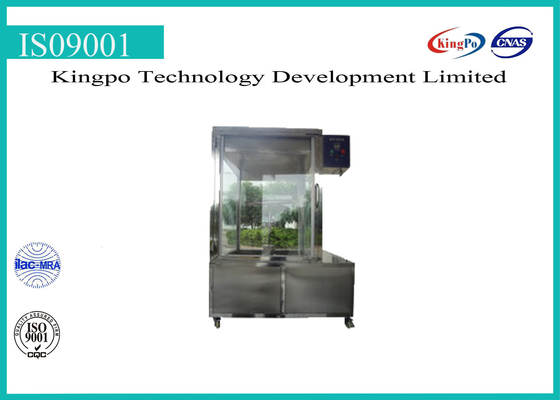

IPx1x2 Drip Test Chamber
Description:
This test chamber is use to verify protection against drip water; second characteristic numeral 1 and 2(drip test) accord to IEC60529.
Specifications:
Product: IPx1x2 drip test chamber
Model: KP-IPx102
Internal size: 800*800*800mm
Outer size: 1000*1200*1700mm
Drip area: 600*600mm
Distance from drip box to test sample: 200mm
Drip hole aperture: 0.4mm
Distance from each hole: 20mm
Drip rate: 1mm/min or 3mm/min adjustable
Test time: 1~999999min
Power supply: 220VAC 50Hz
Turn table:
Diameter 500mm
Rotate 1~10 rpm adjustable can tilt 15°for IPx2 test
