Go No Go Gauge To Check Dimensions Smin , Thread Plug Gauge 7006-29B-2、E26 GAUGES/E27 GAIGE
  • name
  • name
  • name

Go No Go Gauge To Check Dimensions Smin , Thread Plug Gauge 7006-29B-2、E26 GAUGES/E27 GAIGE

MOQ: 1
Price: To be quoted
Standard Packaging: safety carton pack or plywood box
Delivery Period: 7 working days
Payment Method: T/T
Supply Capacity: 1000 pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
china
Brand Name
kingpo
Certification
iso9001 ce
Model Number
7006-29B-2
Brand Name:
Kingpo
Model Number:
KP-7006-29B-2
Material:
Hardness Steel
Standard:
IEC60061-3
Highlight:

Go No Go Gauge

,

Iec 60061 3

Product Description

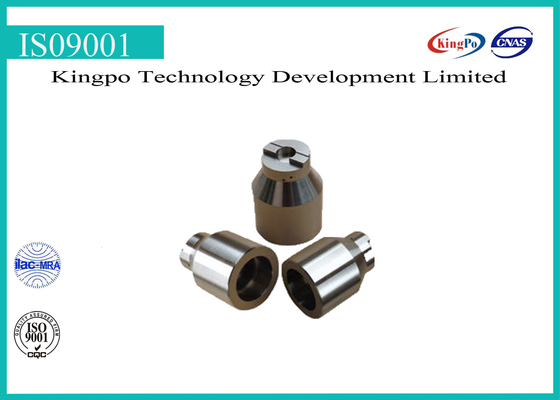

E26d Lamp Cap Gauge | Gauge With Reference Diameter Of 23mm For Caps E26d | 7006-29B-2



PURPOSE



To check dimensions Smin., Smax., S1min. and S1max. of caps E26d.



TESTING



 When the cap (or lamp) has been pushed into the gauge as far as it will go, surface W of the plunger shall project beyond surface Y, but for unmounted caps, shall not project beyond surface X.
For caps on finished lamps, surface W shall not project beyond surface V.

Go No Go Gauge To Check Dimensions Smin , Thread Plug Gauge 7006-29B-2、E26 GAUGES/E27 GAIGE 0



Related gauges:



"NOT GO" GAUGE FOR E26, E26/50x39, E26/51x39 & E26d CAPS ON FINISHED LAMPS (Sh. 7006-29L-4)
"GO" GAUGE FOR CAPS E26, E26/50x39, E26/51x39 & E26d (7006-27D-3)
GAUGE FOR TESTING CONTACT-MAKING OF LAMPS FITTED WITH CAPS E26, E26/50x39,E26/51x39 & E26d (NON-SKIRTED) (7006-29-3)
E26d GAUGE FOR CAPS ON FINISHED LAMPS FOR TESTING PROTECTION AGAINST ACCIDENTAL CONTACT (7006-29A-2)
E26d GAUGE WITH REFERENCE DIAMETER OF 23 mm FOR CAPS (7006-29B-2)
E26d GAUGE WITH REFERENCE DIAMETER OF 13,2 mm FOR CAPS (7006-29C-2)
E26d GAUGE WITH REFERENCE DIAMETER OF 10,4 mm FOR CAPS ON FINISHED LAMPS (7006-29D-1)



Go No Go Gauge To Check Dimensions Smin , Thread Plug Gauge 7006-29B-2、E26 GAUGES/E27 GAIGE 1Go No Go Gauge To Check Dimensions Smin , Thread Plug Gauge 7006-29B-2、E26 GAUGES/E27 GAIGE 2Go No Go Gauge To Check Dimensions Smin , Thread Plug Gauge 7006-29B-2、E26 GAUGES/E27 GAIGE 3Go No Go Gauge To Check Dimensions Smin , Thread Plug Gauge 7006-29B-2、E26 GAUGES/E27 GAIGE 4
