| MOQ: | 1 |
| Standard Packaging: | safety carton pack or plywood box |
| Delivery Period: | 25 working days |
| Payment Method: | T/T |
| Supply Capacity: | 3-5 sets per month |

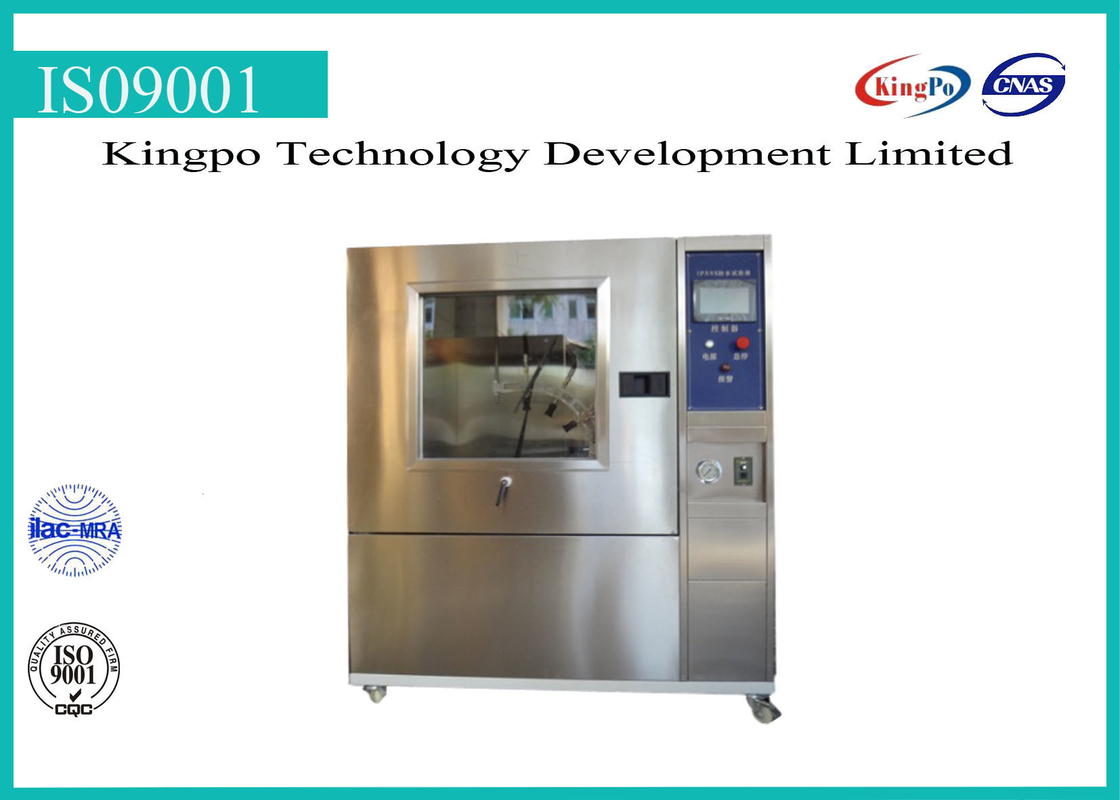

Product Information
The test room includes test desk,reservoir,control box,production dehydration buffer and spray system
Technical Parameter:
1. Internal size:D1000×W1000×H1000㎜
2. External size:D1200×W1500×H1900㎜
3. Spray system:consists of Italian high pressure high temp. water pump,high pressure high temp. hydraulic pressure gauge,high pressure high temp. solenoid valve
5. Tube:304 stainless steel joint,high temperature resistance,high pressure hydraulic tubing
6. Spray temp.:80°±5°
7. Spray pressure:80～100bar(8000～10000Kpa)100kg
8. Flow rate :14～16L/min
9.Spray distance:10～15cm
10. When spraying at 0°,30°,60°,90°,the distance between tested specimen is 100-150mm; 30s/ position.
Turntable:specimen should be placed on a turntable of 5r/min
11.Spray interval:30S(can be set)
12.Operation time control:1min～9999min(adjustable)
13.Water circulation makes water source to be recycled.
14. Bearing surface:frontal area of product
15. Spray pressure gauge:display spray pressure
16. Control system:Independent R&D touch screen
17. External test room : toughened glass as waterproof wall, stainless steel square tube as bracket
Structure and material:
1. nozzle tube:304 stainless steel joint hydraulic tubing
2. Water tank:304 stainless steel insulation interlayer
3. Electrical accessory from CHINT,OMRON,Delexi,Fuji
Environment requirement
1. Voltage: 380V; power: 12KW
2. Temperature and humidity range:10-40C°,20-75HR%
3. Distance between device and other object:back side&left and right:above 500mm;Front side:1.2m
4. Water source:purified water 30L
5. drainage pipeline:connect with 4 drainage pipelines behind the equipment
Italian high pressure high temp. water pump
high pressure high temp. electronic flow meter
Home
Operation Interface
Parameter Setting Interface
Spray schematic
video
|
|
