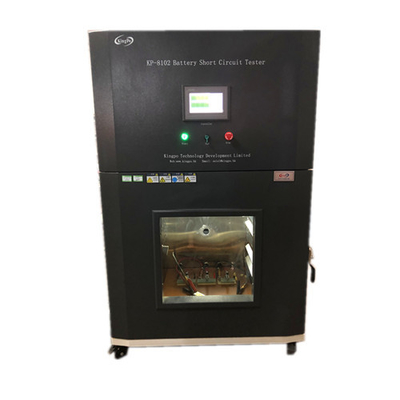

Temperature-type Battery Short Circuit Tester , IEC62133 Battery Short Circuit Tester
Product Details:
| Place of Origin: | china |
| Brand Name: | KingPo |
| Certification: | calibration certificate(ISO17025) |
| Model Number: | KP-8102 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | To be quoted |
| Packaging Details: | safety carton pack or plywood box |
| Delivery Time: | 35 working days |
| Payment Terms: | TT |
| Supply Ability: | 3 sets per month |
|
Detail Information |
|||
| Standard: | IEC62133-2012 | Measurement Voltage: | 0-100V |
|---|---|---|---|
| Display Accuracy: | F.S ±0.2% Rdg ±1digit | Measurement Current: | 0-1000A DC |
| Resistance: | 80±20 MΩ | Mechanical Life: | 300,000 Times |
| Temperature: | 55℃±2℃ | Temperature Fluctuation: | ±1℃ |
| Internal Dimension: | W600 X D500 X H600mm | Internal Material: | 304# Stainless Steel |
| High Light: | Battery Test Chamber,Battery Testing Equipment |
||
Product Description
Temperature-type Battery Short Circuit Tester , IEC62133 Battery Short Circuit Tester
Standard
It is conforms to IEC62133 clause 7.3.2 ,8.3.1,8.3.2 IEC60086-4 clause 6.5.1 IEC60086-4 clause 6.5.8 6.5.9 ,IEC 60086-1 ,IEC61951,IEC61960, UN38.3 ,UL1642, UL2054, QC 743/744, MT/T 1051-2007,GB/T 2900.11-1988,GB31241-2014and etc.
Feature:
| High current contactor |
(1)remotely connect and disconnect DC operational voltage to 220V； (2)rated operational current 1000A;equipped with series clay magnetic blowout cover and system (3)electromagnetic system and main contact arc-extinguishing system are fixed on bottom; main contact is made of red copper;low contact resistance,rapid reaction speed； (4)Reliable and safe;long service life and convenient maintenance； |
| Remote controller |
(1)long distance wireless control； (2)reliable and stable;auto lock and interlock; anti-interference and long service life； |
| Voltmeter |
(1)measurement voltage:0-100V； (2)display accuracy:F.S ±0.2% rdg ±1digit； (3)motion:double integral |
| Ammeter |
(1)measurement current:0-1000A DC one level； (2)display accuracy:F.S±0.2% rdg±1digit； (3)motion:double integral |
| Basic Configuration |
Consist of high current contactor,remote controller,voltmeter,ammeter,etc (2)accessories,special tool,spare parts,etc |
| Touch screen interface(English) |
|
| USB Interface |
export data via USB |
| Technical Parameter: | |
| 1 max short circuit current | 1000A |
| 2 resistance | 80±20 mΩ |
| 3 Control Distance | no solid barrier7m |
| 4 mechanical life | 300,000 times |
| 5 Electrical life | Resistive load 50,000 times |
| 6Temperature Range | room temperature +10℃~ 80℃(meet test condition of 55℃±5℃ and 25℃±5℃) |
| 7 Temperature fluctuation | ±1℃ |
| 8 Temperature deviation | ±2℃ |
| 9 Internal dimension | W600 X D500 X H600mm |
| 10 Internal material | 304# stainless steel(thickness 1.0mm) |
| 11 External dimension | W940XD780XH1620 mm |
| 12 External material | cold rolled plate baking varnish(thickness 1.0mm,total thickness of internal chamber 100mm) |
| 13 Observation window | 390 X 360mm(20mm thick toughened explosion-proof glass) |
| 14 Light design | highlighted energy-saving lamp |
| 15 test hole | 3 holes(diameter :φ50mm) ;3 stainless steel covers;3 silicone plugs |
| 16 pulley | easy to move with strengthening screw bolt |
| 17 heating system | Fin Type Heat Dissipation tube nickel-chrome U-type high efficiency heater |
| 18 circulation system | stainless steel lengthened axis ;moisture proof and Heat Dissipation sirocco fan; |
| 19 air-deflector | Can adjust up and down,left and right;to ensure uniform distribution of temperature |
| 20 Exhaust System | On the back of equipment;can make waste gas exhaust through it |
| 21 Power supply; | AC220V 50HZ |
| 22 Power | 3.0KW |
Operation room
Installation
1.Operation condition requirement: temperature-10℃~100℃ humidity 10~90% with no condensation
2.Other:locate the machine on a plane table with certain intensity.
3.Test requirement:
(1)install a battery in explosion proof box(standard)
(2)Independent cement room,has observation window for monitoring and controlling (customer self-prepare)
4.Power:AC 1φ 3W 220V
5.Installation site(suggestion):
