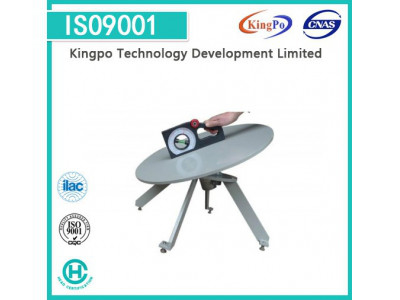

IEC60335-1 Stability Test Turn Table With Digital Inclinometer / Inclined Plane Device

IEC60335-1 Stability Test Turn Table With Digital Inclinometer / Inclined Plane Device

MOQ: 1
Price: To be quoted
Standard Packaging: safety carton pack or plywood box
Delivery Period: 7 working days
Payment Method: T/T
Supply Capacity: 50 sets per month
Detail Information
Place of Origin
China
Brand Name
KingPo
Certification
Calibration Certificate
Model Number
KP-ST
Standard:
IEC60335-1 Clause 20.1
Tilt Angle:
0-30 °
Angle Accuracy, Precision:
± 0.5 °
Maximum Weight Load:
50kg
Table Diameter:
1000mm
Purpose:
Determine The Stability Of Electric Appliances
Highlight:

High Frequency Spark Tester

,

Bend Test Machine

Product Description

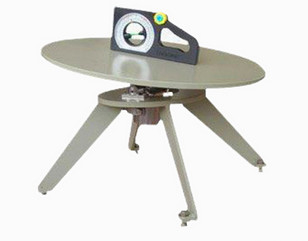

IEC60335-1 Stability Test Turn Table With Digital Inclinometer / Inclined Plane Device



Product information:

This device is designed and manufactured in accordance with the IEC60335-1 clause 20.1.It is used to test the stability of an apparatus that requires a surface in order to work. The device consists of a surface and an angle adjusting device, with angles 0~15°adjustable.



The appliance is placed in any normal position of use on a plane inclined at an angle of 10° to the horizontal, the supply cord resting on the inclined plane in the most unfavourable position. However, if part of an appliance comes into contact with the horizontal supporting surface when the appliance is tilted through an angle of 10°, the appliance is placed on a horizontal support and tilted in the most unfavourable direction through an angle of 10°.



Appliances provided with doors are tested with the doors open or closed. Appliances intended to be filled with liquid by the user in normal use are tested empty or filled with the most unfavourable quantity of water up to the capacity indicated in the instructions.



Technical Parameter

1. Tilt angle :0-30 °equipped with angle measuring instrument calibration, easy to operate, high angle accuracy, precision ± 0.5 °

2. The maximum weight load: 50kg

3. Table diameter: 1000mm



Type Surface diameter Angle range Bearing capacity Rotate way
KP-ST3 1000mm 0-30° 125KG Hand-actuated/dynamoelectric
KP-ST2 800mm 0-30° 80KG Hand-actuated/dynamoelectric
KP-ST1 600mm 0-45° 50KG Hand-actuated
