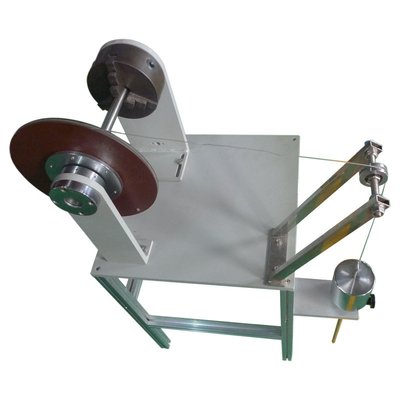

IEC60598-1 Clause 4.12.5 Torque Test On Glands Screwed Glands Testing Machine

small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  IEC60598-1 Clause 4.12.5 Torque Test On Glands Screwed Glands Testing Machine

Product Details:
Place of Origin: China
Brand Name: Kingpo
Certification: Calibration Certificate
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: To be Quoted
Packaging Details: safety carton pack or plywood box
Delivery Time: 25 working days
Payment Terms: T/T
Supply Ability: 80 sets per month
Detailed Product Description
Standard: IEC60598-1 Clause 4.12.5 Purpose: Test Screwed Glands
DISC DIAMETER: 250mm Weight: 15N,20N,25N,30N 40N*1
High Light:

High Frequency Spark Tester


Bend Test Machine


Screwed Glands Tester IEC60598-1 clause 4.12.5 Torque Tests On Glands


Product details:

The device is used to check screwed glands, and conform to the IEC60598-1 clause 4.12.5. Screwed glands shall be fitted with a cylindrical metal rod having a diameter equal to the nearest whole number of millimetres below the internal diameter of the packing. The glands shall then be tightened by means of a suitable spanner, the moment shown in following Table being applied to the spanner for 1 min.


Table 4.2- Torque tests on glands

Diameter of test rod



Metal glands


Moulded plastio glands


Up to 7

Over 7 up to 14

Over 14 up to 20

Over 20










After the test, the luminaire and the glands shall show no damage.


Technical parameters:

1. It is equipped with 4-40mm stainless steel stick.

2. Weight: 15N,20N,25N,30N 40N*1.

3. The diameter of the Disc:250mm.


IEC60598-1 Clause 4.12.5 Torque Test On Glands Screwed Glands Testing Machine 0
