ANSI / BHMA A156 Door Lock Durability Tester / Fingerprint Lock Durability Tester

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  ANSI / BHMA A156 Door Lock Durability Tester / Fingerprint Lock Durability Tester

Product Details:
Place of Origin: CHINA
Brand Name: KINGPO
Certification: iSO9001
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: 100*100*100CM
Delivery Time: 50
Supply Ability: 100PCS
Detailed Product Description
Power: Electronic,1.5kW Usage: Geometry Measuring Instrument
Application: Motor Production Testing Color: Customised
Product Name: Hydraulic Comprehensive Test Bed,test Bench For Electrical Workshop,Electric Motor Testing Dynamometer
High Light:

electric motor testing equipment

,

brushless motor tester

Overview of instruments:

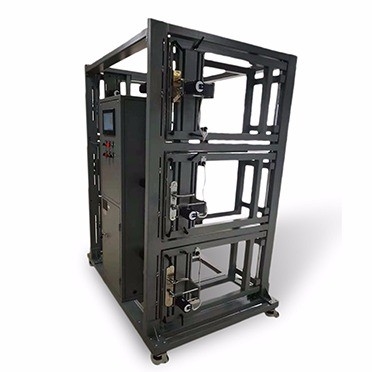

The door lock durability testing machine (US standard) is designed and manufactured strictly according to the latest standards of ANSI/BHMA A156.2,ANSI/BHMA A156.13,ANSI/BHMA A156.25 and ANSI/BHMA A156.39, which is suitable for certification organization laboratory, and can also be used for product design verification before factory production and sampling test of products in production. The equipment uses PLC control, touch screen set test program, rotary cylinder operation handle (grip), meet the standard ANSI/BHMA A156.2,ANSI. BHMA A156.13,ANSI/BHMA A156.25 and ANSI/BHMA A156.39 latest version test requirements.





Main technical parameters:

1. test bench frame: aluminum profile stand alone frame ,(stand-alone test machine);

2.6 stations (or 3 stations);

3. test bench space (overalldimension:1.5m (L) X1m (W) X2.0m (H));

4. Standard door size Test Door:36in wide (width);

5. Lock Block Specification :400 x130x40mm;

6. lock handle operating angle (handle operating angle):0~180 degrees adjustable;

7. handle torque (door handle operating torque:max.5Nm;)

8. closing force (closing force):22N &44N, optional;

9. life frequency :25~30 times per minute, adjustable speed;

10. Touch screen (HMI): Siemens, Set for cycle number and test speed life times set, power off hold count display;

11. Pneumatic components: SMC.

ANSI / BHMA A156 Door Lock Durability Tester /  Fingerprint Lock Durability Tester 0
