Product Name: Battery High Current Short Circuit Tester Technical Solution Warranty: One Year Limited Warranty With Lifetime Support
Export Market: Europe And America, Etc., Middle East, Asia Power: 3KW, 10000w, 30W
High Light:

Battery High Current Short Circuit Tester


30W High Current Short Circuit Tester

Product Description

High current short circuit tester

Technical Solution


High current short circuit tester.doc

I. Main technical parameters
Serial number Project name Specification parameters
1.01 Name of equipment High current short circuit tester
1.02 Type of equipment KP-PC-5000A
1.03 Maximum sustained short circuit current 5000A
1.04 Maximum instantaneous short circuit current 6000A
1.05 Control system PC computer remote control system
1.06 Vacuum Inbox W 480mm X D 490mm X H 480mm
1.06 Vacuum range 10~-101 Kpa( adjustable)
1.07 DC response time ≤10 ms
1.08 Contactor internal resistance <5 mm
1.09 Mechanical life 300,000
1.10 Copper wire

(1) Maximum load current :6000 A

(2) Length :2 m

1.11 Test battery Meet test requirements for modules and battery pack
1.12 Acquisition system
  1. Voltage acquisition

Acquisition channel :2 channels

Range :0~100 V

Acquisition accuracy :±10 mv

5 mv resolution

Acquisition frequency :≤100 ms adjustable

  • Temperature acquisition

Acquisition channel :4 channels

Scope :800℃~ normal temperature

Acquisition accuracy :±1℃

Resolution :0.5℃

Acquisition frequency :≤100 ms adjustable

  • Current acquisition:

Acquisition channel :1 channel

Range :0~5000 A

Acquisition accuracy :0.5 FS

1 A resolution

Acquisition frequency :≤100 ms adjustable

1.13 Explosion-proof box

(1) Inner Box Size: W 1000*D 1000*H 1000mm

(2) Explosion-proof box material: single layer 4 steel plate welding. mm 8 thickness

(3) Pressure relief port: the back of the box has a discharge port of 300*300 mm. When the battery explodes, it can release the pressure in time

(4) Smoke exhaust system of explosion-proof box: the top is equipped with smoke exhaust fan, the outer diameter of the exhaust pipe is DN102mm

1.14 Overall dimensions

Short circuit host: W 700mm X D1100mm X H1600mm

Explosion box: W1020mm X D 1050mm X H1480mm

Remote Control Computer Cabinet: W 850mm X D 700mm X H1300mm

1.15 Weight

about 300 Kg of short circuit main engine

Explosion box approximately kg 400

Computer cabinet :50 kg

1.16 Power supply AC 220V 50HZ
1.17 Power 2KW
1.18 Use of gas sources Mpa 0.6
1.19 Noise ≤70 dB
2.1 The remote control high current short circuit device is designed to synthesize various battery short circuit test standard requirements: short circuit in normal temperature environment according to the standard requirements, its short circuit internal resistance range <5 mΩ, simulate external short circuit, and detect the short circuit safety performance of the battery.

GB/T 31467.3-2015< lithium-ion battery pack and system for electric vehicles-part 3: safety requirements and test methods.

GB/T 31485-2015< Safety Requirements and Test Methods of Power Battery for Electric Vehicle Test and Evaluation of Safety Performance of High Power Battery for Automobile under Short Circuit

UL1642 lithium battery safety standards


IV. Product structure and performance

Remote PC Computer Control System

1: remote control system: the upper computer software is installed in the standard Windows system, the operation is simple and easy to learn, to meet the test requirements. Real-time recording of current; voltage; temperature, time, observation and analysis simple and convenient.The control distance ≥10 m.


Structure Description

1: short circuit mainframe

Double safety pneumatic copper contactor short circuit mode :1 normally open contactor, the other 1 is normally closed contactor. The double-axis high-precision cylinder with short-circuit opening contactor will close the copper connecting block of positive and negative electrode to form a circuit to achieve short-circuit purpose. When the short-circuit time is reached, the contactor will open normally, and the contactor will also open normally. The purpose is to prevent the normally open contactor from accidentally sintering, and the normally closed contactor can open in time, so as to avoid the safety accident caused by the battery short-circuit test because the contactor can not break.

Vacuum arc extinguishing mode: the double safety contactor is installed in the vacuum box, the vacuum pumping makes the air in the box thin, the contact surface of the contactor will not produce arc when short circuit, so that the contact surface will not be sintered, and the service life will be prolonged to reduce the failure rate.

Vacuum control system: through vacuum pump, vacuum valve, pressure sensor, high pressure gas pipe, joint and other vacuum connectors to the box internal pressure control.



Security protection function


(1) Emergency stop protection function:

The equipment and the computer control cabinet are each equipped with an emergency stop switch.When an emergency occurs or you want to stop the test, you can press this switch to stop the output of the control board and stop all test actions.

(2)Three-color lights sound and light alarm system:

The equipment is equipped with a three-color alarm lamp, the light flashing alarm reminds the personnel equipment different test status.

(3) Fault display

(4) Power-off protection function

(5) Electrical safety protection;

(6) Leakage protection, overheating protection;



Equipment installation conditions:

1. installation in place: the equipment can be unloaded through a 2 ton forklift, after moving into the laboratory, adjust the distance between the rear part of the equipment and the left and right sides of the wall ≥1000 mm, the front operation space ≥1500 to facilitate the operation test, after fixing the equipment. Power cord and compressed gas source: air source pressure ≥0.6 Mpa

2. ground bearing ≥500 kg/㎡.

3. Laboratory: The entire laboratory must have a ventilation system to discharge the smoke leaked during the test; the lighting is good, and it is convenient to watch the operating equipment.

4. The passage of the laboratory should be convenient to transport batteries and related transportation vehicles. People can be evacuated in time when a special emergency situation occurs.

5. laboratory should be equipped with corresponding fire fighting facilities to facilitate the use of its fire fighting tools.

6. ambient temperature: room temperature -35℃

7. Environmental Humidity :85% R.H ≤

V. Standard configuration
Configuration Name Quantity   Configuration Name Quantity
Short circuit mainframe 1 unit Operating instructions 1.
Explosion-proof box 1 unit Collection line Article 10
Remote computer control cabinet 1 unit Data acquisition system 1 set
      Conductor-2m Article 2



VI. List of equipment accessories
Name of accessories Origin/brand   Name of accessories Origin/brand
Computer Control System Yiqiao Tai'an, Guangdong Computer mainframe China, Lenovo
Lead wire Yiqiao Tai'an, Guangdong Data acquisition system KINGPO
Current sensor Hall sensor, Nanjing Intermediate relay 2 P 24V Schneider, France
Cylinder SNS, Taiwan Ac contactor CU-11 Taiwan, Taiwan
Pneumatic solenoid valve SNS, Taiwan Button ∮22 220V Hongbo, China
Gas source filter SNS, Taiwan Vacuum baffle valve Simat, Shanghai

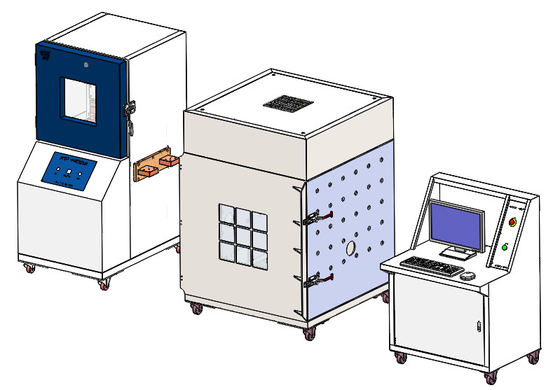

Design reference drawing
