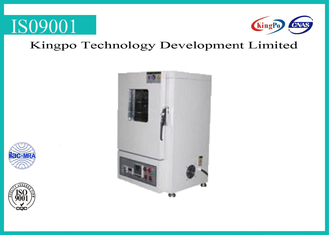

IEC Standard Battery Thermal Shock Test Chamber For UL KP-3020-B
Product Details:
| Place of Origin: | china |
| Brand Name: | KingPo |
| Certification: | iso9001 |
| Model Number: | KP-3020-B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | To be quoted |
| Packaging Details: | safety carton pack or plywood box |
| Delivery Time: | 35 working days |
| Payment Terms: | TT |
| Supply Ability: | 3 sets per month |
|
Detail Information |
|||
| Type: | Climatic Simulating Test Chamber | Weight: | 80kg |
|---|---|---|---|
| Internal Space: | W65*H92*D53cmc | Temperature Accuracy: | 0.1℃ |
| Temperature Stability: | ±1.0℃ | Temperature Uniformity: | ±2℃ |
| Highlight: | Battery Test Chamber,Battery Testing Equipment,UL KP-3020-B Thermal Shock Test Chamber |
||
Product Description
Thermal Shock Test Chamber For UL And IEC Standard
1. Quick Details
| Alternative name | Battery Thermal Shock Test Chamber |
| Function | Test battery safety capability after suffering impact of hot air |
| Type | Climatic simulating test chamber |
| Weight | 80kg |
| Internal space | W65*H92*D53cm |
| Corresponding test standard | UL2054-2008, UL1642, SJ/T11170, IEC62133, SJ/T11169, GB/T18287, QC/T743, QC/T744 |
2. Description
The battery thermal shock test chamber is used to test safety capability after suffering hot air shock.
The temperature will be raised at certain speed at certain time, apply hot air cyclic system to ensure average distribution of working temperature.
3. Features
a. The low air pressure tester is used for testing safety capability of lithium battery.
b. The tester is simulating battery suffering environment of hot air shock.
c. Test result is non explosion, no fire, non air leaking, non electrolyte leakage for the qualified battery.
4. Specifications
| Model | KP-3020-B |
| Temperature range | Normal temperature to 200℃ |
| Temperature accuracy | 0.1℃ |
| Temperature stability | ±1.0℃ |
| Temperature uniformity | ±2℃ |
| Temperature raising time | (5±2)℃／min (temperature average raising) |
| Temperature- controlled meter | Programmable, time control for temperature raising time |
| Internal dimension W*H*D mm | W40*H40*D45cm |
| External dimension W*H*D mm | W65*H92*D53cm |
