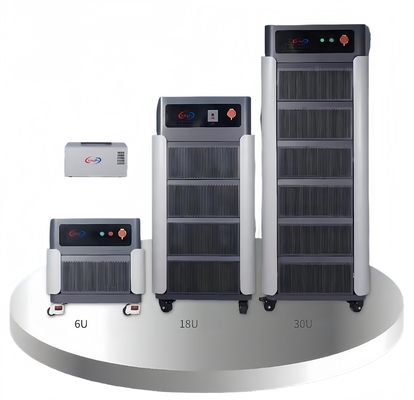

In the rapidly evolving world of battery technology, reliable testing equipment is essential for ensuring performance, safety, and longevity. The KP-100V150A-05CH Battery Charge and Discharge Tester stands out as a high-precision, multi-channel system designed for comprehensive battery pack evaluation. Ideal for lithium-ion, lead-acid, and other battery types, this tester supports cycle life testing, capacity assessment, and charge/discharge efficiency analysis.
| Category | Parameter | Details |
|---|---|---|
| Environmental Conditions | Operating Temperature | 0°C to 45°C |
| Storage Temperature | -10°C to 50°C | |
| Operating Humidity | ≤70% RH (no condensation) | |
| Storage Humidity | ≤95% RH (no condensation) | |
| AC Input | Voltage | AC 380V ±10%, 50/60Hz ±5Hz |
| Power | 81.5KW | |
| Power Factor | ≥99% (full load) | |
| Noise Level | ≤80dB | |
| Cooling | Forced air cooling | |
| Protection Level | IP20 | |
| DC Output | Channels | 5 |
| Voltage Range | Charge: 0V-100V; Discharge: 6V-100V | |
| Voltage Accuracy | ±0.05% FS | |
| Current Range | -150A to 150A | |
| Current Accuracy | ±0.05% FS | |
| Response Time | 10ms (10% FS to 90% FS) | |
| Auxiliary Channels | Type | NTC Temperature |
| Range | -30°C to 120°C | |
| Accuracy | ±2°C | |
| Dimensions & Weight | Size | 686mm (W) x 730mm (D) x 1960mm (H) |
| Weight | ≤350KG |
This battery charge discharge tester delivers unmatched value with its combination of precision, efficiency, and safety. An essential tool for optimizing battery performance in EV manufacturing, solar energy systems, and portable device production. Contact us today for pricing, demos, or custom configurations.
|
|
In the rapidly evolving world of battery technology, reliable testing equipment is essential for ensuring performance, safety, and longevity. The KP-100V150A-05CH Battery Charge and Discharge Tester stands out as a high-precision, multi-channel system designed for comprehensive battery pack evaluation. Ideal for lithium-ion, lead-acid, and other battery types, this tester supports cycle life testing, capacity assessment, and charge/discharge efficiency analysis.
| Category | Parameter | Details |
|---|---|---|
| Environmental Conditions | Operating Temperature | 0°C to 45°C |
| Storage Temperature | -10°C to 50°C | |
| Operating Humidity | ≤70% RH (no condensation) | |
| Storage Humidity | ≤95% RH (no condensation) | |
| AC Input | Voltage | AC 380V ±10%, 50/60Hz ±5Hz |
| Power | 81.5KW | |
| Power Factor | ≥99% (full load) | |
| Noise Level | ≤80dB | |
| Cooling | Forced air cooling | |
| Protection Level | IP20 | |
| DC Output | Channels | 5 |
| Voltage Range | Charge: 0V-100V; Discharge: 6V-100V | |
| Voltage Accuracy | ±0.05% FS | |
| Current Range | -150A to 150A | |
| Current Accuracy | ±0.05% FS | |
| Response Time | 10ms (10% FS to 90% FS) | |
| Auxiliary Channels | Type | NTC Temperature |
| Range | -30°C to 120°C | |
| Accuracy | ±2°C | |
| Dimensions & Weight | Size | 686mm (W) x 730mm (D) x 1960mm (H) |
| Weight | ≤350KG |
This battery charge discharge tester delivers unmatched value with its combination of precision, efficiency, and safety. An essential tool for optimizing battery performance in EV manufacturing, solar energy systems, and portable device production. Contact us today for pricing, demos, or custom configurations.
