Detail Information |
|||
| Arm Length(mm): | 1600 | Repeatability(mm): | ±0.05 |
|---|---|---|---|
| Loading Ability(KG): | 6 | Power Source(KVA): | 6 |
| Net Weight(KG): | 166 | ||
| High Light: | Welding Six Axis Industrial Robot,Dustproof Six Axis Industrial Robot,6KG Loading Welding Robot |
||
Product Description
Welding Robot
Product details

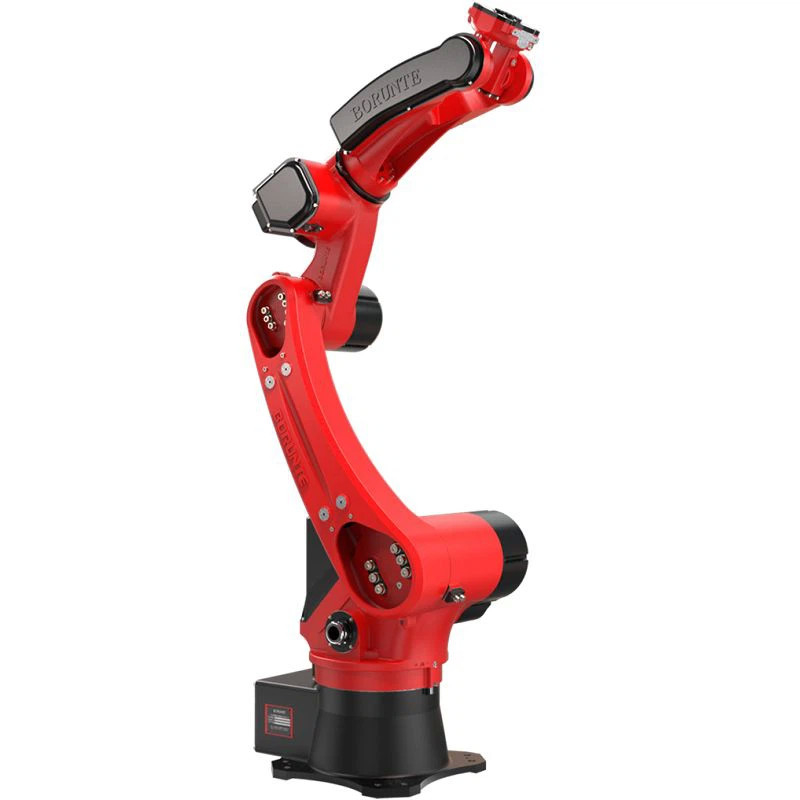

BRTIRWD1506A six-axis industrial robot is BORUNTE ROBOT Co.,Ltd. designed for the development of the welding application industry. The robot has compact structure, small volume and light weight. The maximum load is 6KG, the maximum arm length is 1600mm. The wrist applies hollow structure with more convenient trace and flexible action. The protection grade reaches IP54 at the wrist and IP50 at the body. Dust-proof and water-proof. The repeat positioning accuracy is ±0.05mm.
Main Specification
Arm Length(mm): 1600
Repeatability(mm): ±0.05
Loading Ability(KG): 6
Power Source(KVA): 6
Net Weight(KG): 166
| Item | Range | Max.Speed | |
| Arm | J1 | ±165° | 163°/s |
| J2 | -100°/+75° | 148°/s | |
| J3 | ±82° | 223°/s | |
| Wrist | J4 | ±150° | 168°/s |
| J5 | ±110° | 270°/s | |
| J6 | ±360° | 703°/s | |
No further notice if the specification and appearance are changed due to improvement and other reasons. Thank you for your understanding.
