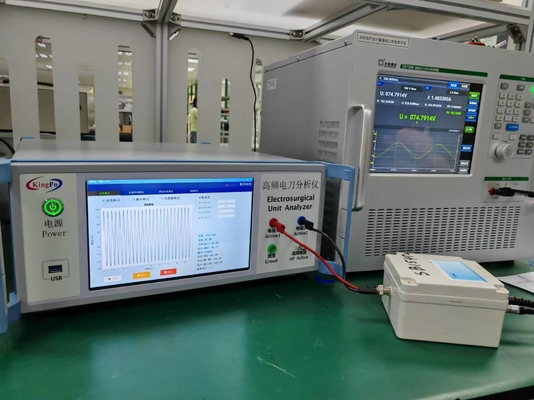

KP-8850 Electrosurgical Unit Analyzer for ESU Testing

Discover the KP-8850 Electrosurgical Unit Analyzer from Kingpo Technology Development Limited, a cutting-edge device designed for precise testing and analysis of high-frequency electrosurgical units (ESUs). Ideal for medical device manufacturers, quality control labs, and biomedical engineers, this analyzer ensures compliance with safety standards like IEC 60601-2-2.

The KP-8850 is a versatile high-frequency electrosurgical analyzer engineered to evaluate the performance and safety of electrosurgical units. It supports monopolar and bipolar modes, offering comprehensive testing capabilities including power output, load power curves, high-frequency leakage current, and REM/CMQ (Return Electrode Monitoring/Contact Quality Monitoring) functions.

• High Precision Measurements: Accurate readings for power (0-500W), voltage (0-5kV peak), and current (2mA-2000mA RMS)
• User-Friendly Interface: 10-inch full-color LCD touchscreen with waveform display, zoom functionality, and intuitive controls
• Versatile Connectivity: USB, HDMI, LAN ports for data export, external display, and network integration
• Safety-Focused Design: Built-in grounding, high-voltage warnings, and compliance with international safety standards

• Continuous Mode: For cutting modes with sustained high-frequency output
• Pulse Mode: Supports three pulse variations for coagulation or blended modes, with pulse durations from 0-500ms
• Delay Mode: Measures delayed signal outputs

• Range: 0-6400Ω with 1Ω steps
• Accuracy: ±1% (≥50Ω), ±3% (≥10Ω & <50Ω)
• Rated Power: Up to 500W for higher loads, supporting external loads for extended testing

• Range: 2mA-500mA
• Supports multiple network configurations (Leakage Test 1a, 1b, 2, 3a, 3b) for thorough safety assessments
• Bandwidth: 10kHz-250MHz

• Simulates return electrode contact with 0-6400Ω range
• Quick short-circuit (0Ω) or open-circuit (+∞Ω) selections for rapid verification

• 500GB internal storage for saving test results, waveforms, and Excel exports
• Oscilloscope output (1V/A) for external monitoring
• HDMI extension for large-screen viewing of power distribution curves

1. Power On: Connect to grounded outlet, press Power button
2. Connect EUT (Electrosurgical Unit):
   • Monopolar: Active to surgical electrode; Dispersive 1/2 to neutral electrode
   • Bipolar: Active to one electrode; Dispersive 1 to the other
3. Select Mode: Choose Continuous, Pulse, or Delay via touchscreen
4. Set Parameters: Load impedance, polarity (monopolar/bipolar), thresholds
5. Start Test: Press "Start" for real-time data and waveforms
6. Pause/Stop: Analyze waveforms; save results as Excel or images

The KP-8850 stands out in the market for its accuracy, ease of use, and comprehensive features. It's perfect for R&D, production testing, and maintenance of electrosurgical devices. With support for pulse modes and external loads, it handles complex scenarios like coagulation testing. Backed by Kingpo's warranty: 1-year free repair (excluding consumables).
