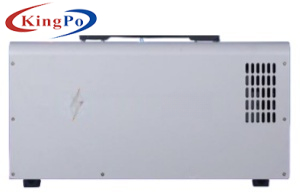

Portable Battery Charge Discharge Test System 60V-120V Series
  • name

Portable Battery Charge Discharge Test System 60V-120V Series

MOQ: 1
Price: To be quoted
Payment Method: T/T
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Kingpo
Highlight:

Portable battery discharge tester 60V-120V

,

Battery charge test system with warranty

,

120V battery testing equipment portable

Product Description
Portable Cabinet Battery Charge and Discharge Test System
Portable Cabinet Parameters
Voltage Specifications
Voltage Series Basic Model Port Definition Voltage/Current Accuracy Minimum Charge/Discharge Current Minimum Discharge Voltage Current Response Time (10%-90%FS)
60V Series HD-60V30A-02CH Supports Same-Port/Different-Port Modes 0.05%FS 30mA 6V 10ms
HD-60V60A-02CH 60mA
HD-60V100A-01CH 100mA
HD-60V120A-01CH 120mA
100V Series HD-100V20A-02CH Supports Same-Port/Different-Port Modes 0.05%FS 20mA 6V 10ms
HD-100V30A-02CH 30mA
HD-100V60A-01CH 60mA
120V Series HD-120V20A-02CH Supports Same-Port/Different-Port Modes 0.05%FS 20mA 6V 10ms
HD-120V30A-02CH 30mA
HD-120V60A-01CH 60mA
Performance Specifications
Voltage Series Basic Model Charge/Discharge Conversion Time Maximum Charging Efficiency Maximum Regenerative Efficiency Input Voltage Power Weight Cabinet Dimensions
60V Series HD-60V30A-02CH 20ms 92% 90% AC 220V 50/60±5Hz 3.6KW ≤20KG














W:416mm H:235mm D:255mm
HD-60V60A-02CH 7.2KW ≤30KG
HD-60V100A-01CH 6KW ≤30KG
HD-60V120A-01CH 7.2KW ≤30KG
100V Series HD-100V20A-02CH 20ms 92% 90% AC 220V 50/60±5Hz 4KW ≤30KG
HD-100V30A-02CH 6KW ≤30KG
HD-100V60A-01CH 6KW ≤30KG
120V Series HD-120V20A-02CH 20ms 92% 90% AC 220V 50/60±5Hz 4.8KW ≤30KG
HD-120V30A-02CH 7.2KW ≤30KG
HD-120V60A-01CH 7.2KW ≤30KG
Portable Battery Charge Discharge Test System 60V-120V Series 0
Tags:

Battery Test Chamber,

Battery Testing System,

Battery Testing Equipment
