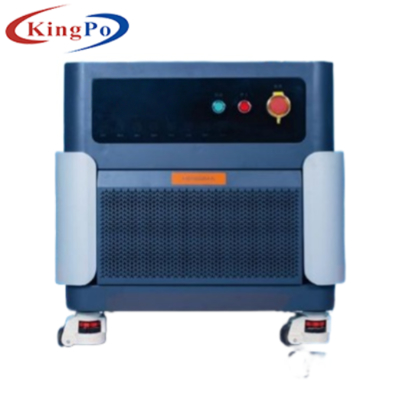

6U Cabinet Battery Charge and Discharge Test System 60V-120V
  • name

6U Cabinet Battery Charge and Discharge Test System 60V-120V

MOQ: 1
Price: To be quoted
Payment Method: T/T
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Kingpo
Highlight:

6U cabinet battery test system

,

60V battery testing equipment

,

9.6KW battery test system

Product Description
6U Cabinet Battery Charge and Discharge Test System
6U Cabinet Parameters
Voltage Series Basic Model Voltage/Current Accuracy Minimum Charge/Discharge Current Minimum Discharge Voltage Response Time Maximum Regenerative Efficiency Power Cabinet Dimensions
60V Series HD-60V10A-16CH 0.05%FS 10mA 6V 10ms 90% 9.6KW W:686mm H:900mm D:730mm
HD-60V20A-08CH 0.05%FS 20mA 6V 10ms 90% 9.6KW
HD-60V20A-16CH 0.05%FS 20mA 6V 10ms 90% 19.2KW
HD-60V30A-08CH 0.05%FS 30mA 6V 10ms 90% 14.4KW
HD-60V30A-16CH 0.05%FS 30mA 6V 10ms 90% 28.8KW
HD-60V50A-04CH 0.05%FS 50mA 6V 10ms 90% 12KW
HD-60V50A-08CH 0.05%FS 50mA 6V 10ms 90% 24KW
HD-60V60A-04CH 0.05%FS 60mA 6V 10ms 90% 14.4KW
HD-60V60A-08CH 0.05%FS 60mA 6V 10ms 90% 28.8KW
HD-60V100A-02CH 0.05%FS 100mA 6V 10ms 90% 12KW
HD-60V100A-04CH 0.05%FS 100mA 6V 10ms 90% 24KW
HD-60V120A-02CH 0.05%FS 120mA 6V 10ms 90% 14.4KW
HD-60V120A-04CH 0.05%FS 120mA 6V 10ms 90% 28.8KW
HD-60V200A-01CH 0.05%FS 200mA 6V 10ms 90% 12KW
HD-60V200A-02CH 0.05%FS 200mA 6V 10ms 90% 24KW
HD-60V240A-01CH 0.05%FS 240mA 6V 10ms 90% 14.4KW
HD-60V240A-02CH 0.05%FS 240mA 6V 10ms 90% 28.8KW
100V Series HD-100V10A-16CH 0.05%FS 10mA 6V 10ms 90% 16KW W:686mm H:900mm D:730mm
HD-100V20A-08CH 0.05%FS 20mA 6V 10ms 90% 16KW
HD-100V20A-16CH 0.05%FS 20mA 6V 10ms 90% 32KW
HD-100V30A-08CH 0.05%FS 30mA 6V 10ms 90% 24KW
HD-100V50A-04CH 0.05%FS 50mA 6V 10ms 90% 20KW
HD-100V60A-04CH 0.05%FS 60mA 6V 10ms 90% 24KW
HD-100V100A-02CH 0.05%FS 100mA 6V 10ms 90% 20KW
HD-100V120A-02CH 0.05%FS 120mA 6V 10ms 90% 24KW
HD-100V200A-01CH 0.05%FS 200mA 6V 10ms 90% 20KW
HD-100V240A-01CH 0.05%FS 240mA 6V 10ms 90% 24KW
120V Series HD-120V10A-16CH 0.05%FS 10mA 6V 10ms 90% 19.2KW W:686mm H:900mm D:730mm
HD-120V30A-08CH 0.05%FS 30mA 6V 10ms 90% 28.8KW
HD-120V50A-04CH 0.05%FS 50mA 6V 10ms 90% 24KW
HD-120V60A-04CH 0.05%FS 60mA 6V 10ms 90% 28.8KW
HD-120V100A-02CH 0.05%FS 100mA 6V 10ms 90% 24KW
HD-120V120A-02CH 0.05%FS 120mA 6V 10ms 90% 28.8KW
HD-120V200A-01CH 0.05%FS 200mA 6V 10ms 90% 24KW
HD-120V240A-01CH 0.05%FS 240mA 6V 10ms 90% 28.8KW
6U Cabinet Battery Charge and Discharge Test System 60V-120V 0
Tags:

Battery Test Chamber,

Battery Testing System,

Battery Testing Equipment
