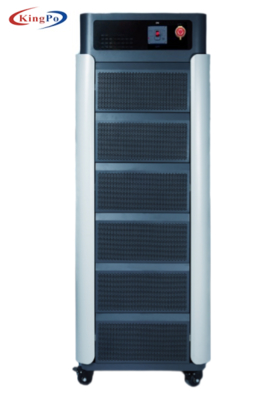

30U Cabinet Battery Test System 60V Series 24KW 10mA
  • name

30U Cabinet Battery Test System 60V Series 24KW 10mA

MOQ: 1
Price: To be quoted
Payment Method: T/T
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Kingpo
Highlight:

30U battery test system 60V

,

24KW battery testing equipment

,

cabinet battery test system 10mA

Product Description
30U Cabinet Battery Charge and Discharge Test System
60V Series Specifications
Basic Model Minimum Charge/Discharge Current Power Basic Model Minimum Charge/Discharge Current Power
HD-60V10A-40CH 10mA 24KW HD-60V100A-14CH 100mA 84KW
HD-60V10A-48CH 10mA 28.8KW HD-60V100A-16CH 100mA 96KW
HD-60V20A-32CH 20mA 38.4KW HD-60V120A-08CH 120mA 57.6KW
HD-60V20A-40CH 20mA 48KW HD-60V120A-10CH 120mA 72KW
HD-60V20A-48CH 20mA 57.6KW HD-60V120A-12CH 120mA 86.4KW
HD-60V30A-32CH 30mA 57.6KW HD-60V120A-14CH 120mA 100.8KW
HD-60V30A-40CH 30mA 72KW HD-60V120A-16CH 120mA 115.2KW
HD-60V30A-48CH 30mA 86.4KW HD-60V200A-04CH 200mA 48KW
HD-60V50A-16CH 50mA 48KW HD-60V200A-05CH 200mA 60KW
HD-60V50A-20CH 50mA 60KW HD-60V200A-06CH 200mA 72KW
HD-60V50A-24CH 50mA 72KW HD-60V200A-07CH 200mA 84KW
HD-60V60A-16CH 60mA 57.6KW HD-60V200A-08CH 200mA 96KW
HD-60V60A-20CH 60mA 72KW HD-60V240A-04CH 240mA 57.6KW
HD-60V60A-24CH 60mA 86.4KW HD-60V240A-05CH 240mA 72KW
HD-60V100A-08CH 100mA 48KW HD-60V240A-06CH 240mA 86.4KW
HD-60V100A-10CH 100mA 60KW HD-60V240A-07CH 240mA 100.8KW
HD-60V100A-12CH 100mA 72KW HD-60V240A-08CH 240mA 115.2KW
100V Series Specifications
Basic Model Minimum Charge/Discharge Current Power Basic Model Minimum Charge/Discharge Current Power
HD-100V10A-40CH 10mA 40KW HD-100V60A-24CH 60mA 144KW
HD-100V10A-48CH 10mA 48KW HD-100V100A-08CH 100mA 80KW
HD-100V20A-32CH 20mA 64KW HD-100V100A-10CH 100mA 100KW
HD-100V20A-40CH 20mA 80KW HD-100V100A-12CH 100mA 120KW
HD-100V20A-48CH 20mA 96KW HD-100V120A-08CH 120mA 96KW
HD-100V30A-32CH 30mA 96KW HD-100V120A-10CH 120mA 120KW
HD-100V30A-40CH 30mA 120KW HD-100V120A-12CH 120mA 144KW
HD-100V30A-48CH 30mA 144KW HD-100V200A-04CH 200mA 80KW
HD-100V50A-16CH 50mA 80KW HD-100V200A-05CH 200mA 100KW
HD-100V50A-20CH 50mA 100KW HD-100V200A-06CH 200mA 120KW
HD-100V50A-24CH 50mA 120KW HD-100V240A-04CH 240mA 96KW
HD-100V60A-16CH 60mA 96KW HD-100V240A-05CH 240mA 120KW
HD-100V60A-20CH 60mA 120KW HD-100V240A-06CH 240mA 144KW
120V Series Specifications
Basic Model Minimum Charge/Discharge Current Power Basic Model Minimum Charge/Discharge Current Power
HD-120V10A-40CH 10mA 48KW HD-120V100A-10CH 100mA 120KW
HD-120V10A-48CH 10mA 57.6KW HD-120V100A-12CH 100mA 144KW
HD-120V30A-32CH 30mA 115.2KW HD-120V120A-08CH 120mA 115.2KW
HD-120V30A-40CH 30mA 144KW HD-120V120A-10CH 120mA 144KW
HD-120V50A-16CH 50mA 96KW HD-120V200A-04CH 200mA 96KW
HD-120V50A-20CH 50mA 120KW HD-120V200A-05CH 200mA 120KW
HD-120V50A-24CH 50mA 144KW HD-120V200A-06CH 200mA 144KW
HD-120V60A-16CH 60mA 115.2KW HD-120V240A-04CH 240mA 115.4KW
HD-120V60A-20CH 60mA 144KW HD-120V240A-05CH 240mA 144KW
HD-120V100A-08CH 100mA 96KW


150V Series Specifications
Basic Model Minimum Charge/Discharge Current Power Basic Model Minimum Charge/Discharge Current Power
HD-150V50A-08CH 50mA 60KW HD-150V120A-04CH 120mA 72KW
HD-150V60A-08CH 60mA 72KW HD-150V100A-06CH 100mA 90KW
HD-150V50A-12CH 50mA 90KW HD-150V120A-06CH 120mA 108KW
HD-150V60A-12CH 60mA 108KW HD-150V200A-02CH 200mA 60KW
HD-150V100A-04CH 100mA 60KW HD-150V200A-03CH 200mA 90KW
30U Cabinet Battery Test System 60V Series 24KW 10mA 0
