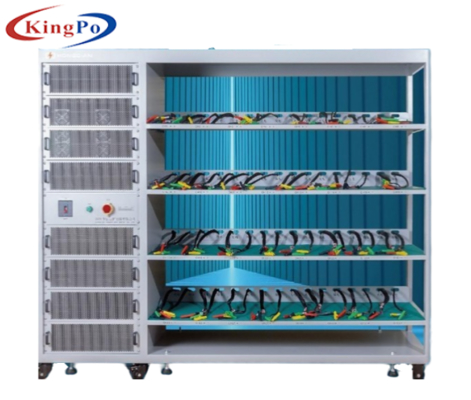

32CH Battery Charge Discharge Test System 30V-100V 28.8KW-96KW
  • name

32CH Battery Charge Discharge Test System 30V-100V 28.8KW-96KW

MOQ: 1
Price: To be quoted
Payment Method: T/T
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Kingpo
Highlight:

32CH battery charge discharge tester

,

30V-100V battery test system

,

28.8KW-96KW battery testing equipment

Product Description
32CH/48CH Integrated Cabinet Battery Charge and Discharge Test System
32CH Integrated Cabinet Parameters
Voltage Series Basic Model Voltage/Current Accuracy Minimum Charge/Discharge Current Minimum Discharge Voltage Response Time Maximum Regenerative Efficiency Power Cabinet Dimensions
30V Series HD-30V30A-32CH 0.05%FS 30mA 6V 10ms 90% 28.8KW W:2130mm H:1790mm D:670mm
60V Series HD-60V30A-32CH 0.05%FS 30mA 6V 10ms 90% 57.6KW
75V Series HD-75V30A-32CH 0.05%FS 30mA 6V 10ms 90% 72KW
100V Series HD-100V20A-32CH 0.05%FS 20mA 6V 10ms 90% 64KW
HD-100V30A-32CH 0.05%FS 30mA 6V 10ms 90% 96KW
48CH Integrated Cabinet Parameters
Voltage Series Basic Model Voltage/Current Accuracy Minimum Charge/Discharge Current Minimum Discharge Voltage Response Time Maximum Regenerative Efficiency Power Cabinet Dimensions
30V Series HD-30V10A-48CH 0.05%FS 10mA 6V 10ms 90% 14.4KW W:2130mm H:1950mm D:670mm
HD-30V20A-48CH 0.05%FS 20mA 6V 10ms 90% 28.8KW
HD-30V30A-48CH 0.05%FS 30mA 6V 10ms 90% 43.2KW
60V Series HD-60V10A-48CH 0.05%FS 10mA 6V 10ms 90% 28.8KW
HD-60V20A-48CH 0.05%FS 20mA 6V 10ms 90% 57.6KW
HD-60V30A-48CH 0.05%FS 30mA 6V 10ms 90% 86.4KW
75V Series HD-75V10A-48CH 0.05%FS 10mA 6V 10ms 90% 36KW
HD-75V20A-48CH 0.05%FS 20mA 6V 10ms 90% 72KW
100V Series HD-100V10A-48CH 0.05%FS 10mA 6V 10ms 90% 48KW
HD-100V20A-48CH 0.05%FS 20mA 6V 10ms 90% 96KW
32CH Battery Charge Discharge Test System 30V-100V 28.8KW-96KW 0
