80CH Battery Test System 30V-100V Series with 0.05%FS Accuracy
  • name

80CH Battery Test System 30V-100V Series with 0.05%FS Accuracy

MOQ: 1
Price: To be quoted
Payment Method: T/T
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Kingpo
Highlight:

80CH battery test system with 0.05%FS accuracy

,

30V-100V battery testing equipment

,

high accuracy battery test system

Product Description

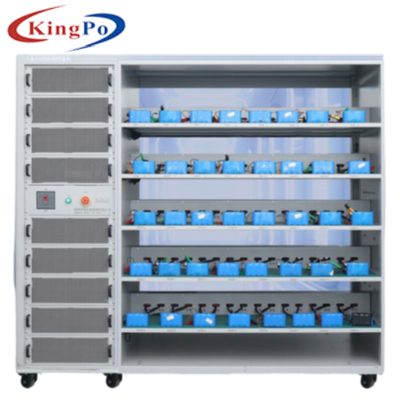

80CH Integrated Cabinet Battery Charge and Discharge Test System
Technical Specifications
Voltage and Current Parameters
Voltage Series Basic Model Voltage/Current Accuracy Minimum Charge/Discharge Current Minimum Discharge Voltage Current Response Time (10%-90%FS) Charge/Discharge Conversion Time
30V Series HD-30V10A-80CH 0.05%FS 10mA 6V 10ms 20ms
HD-30V20A-80CH 0.05%FS 20mA 6V 10ms 20ms
HD-30V30A-80CH 0.05%FS 30mA 6V 10ms 20ms
60V Series HD-60V10A-80CH 0.05%FS 10mA 6V 10ms 20ms
60V Series HD-60V20A-80CH 0.05%FS 20mA 6V 10ms 20ms
75V Series HD-75V10A-80CH 0.05%FS 10mA 6V 10ms 20ms
100V Series HD-100V10A-80CH 0.05%FS 10mA 6V 10ms 20ms
System Performance and Dimensions
Voltage Series Basic Model Maximum Charging Efficiency Maximum Regenerative Efficiency Input Voltage Power Weight Cabinet Dimensions
30V Series HD-30V10A-80CH 92% 90% AC 380V 50/60±5Hz Three-phase five-wire system 24KW ≤550KG W:2120mm H:1950mm D:900mm
HD-30V20A-80CH 92% 90% 48KW
HD-30V30A-80CH 92% 90% 72KW
60V Series HD-60V10A-80CH 92% 90% 48KW
60V Series HD-60V20A-80CH 92% 90% 96KW
75V Series HD-75V10A-80CH 92% 90% 60KW
100V Series HD-100V10A-80CH 92% 90% 80KW
80CH Battery Test System 30V-100V Series with 0.05%FS Accuracy 0
Tags:

Battery Test Chamber,

Battery Testing System,

Battery Testing Equipment
