Container Carton Box Compression Strength Tester With LCD Screen

Product Details:

Place of Origin: China
Brand Name: KingPo
Certification: Calibration Certificate

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: To be discussed
Packaging Details: safety carton pack or plywood box
Delivery Time: 35 working days
Payment Terms: T/T
Supply Ability: 3 sets per month
Contact Now

Detail Information

Permissible Sample Weight: 1T Resolution: 1/10000
Precision: ≤0.5% Operation And Control: LCD Screen
Power Unit: KG、LB、N Test Space: 800 X 600 X 600mm
Compression Speed Standard: 10±3mm/min Exterior Dimension: (L X W X H)1000x1400x1650mm
High Light:

ozone test chamber

,

temperature and humidity chamber

,

LCD Screen Box Compression Strength Tester

Product Description

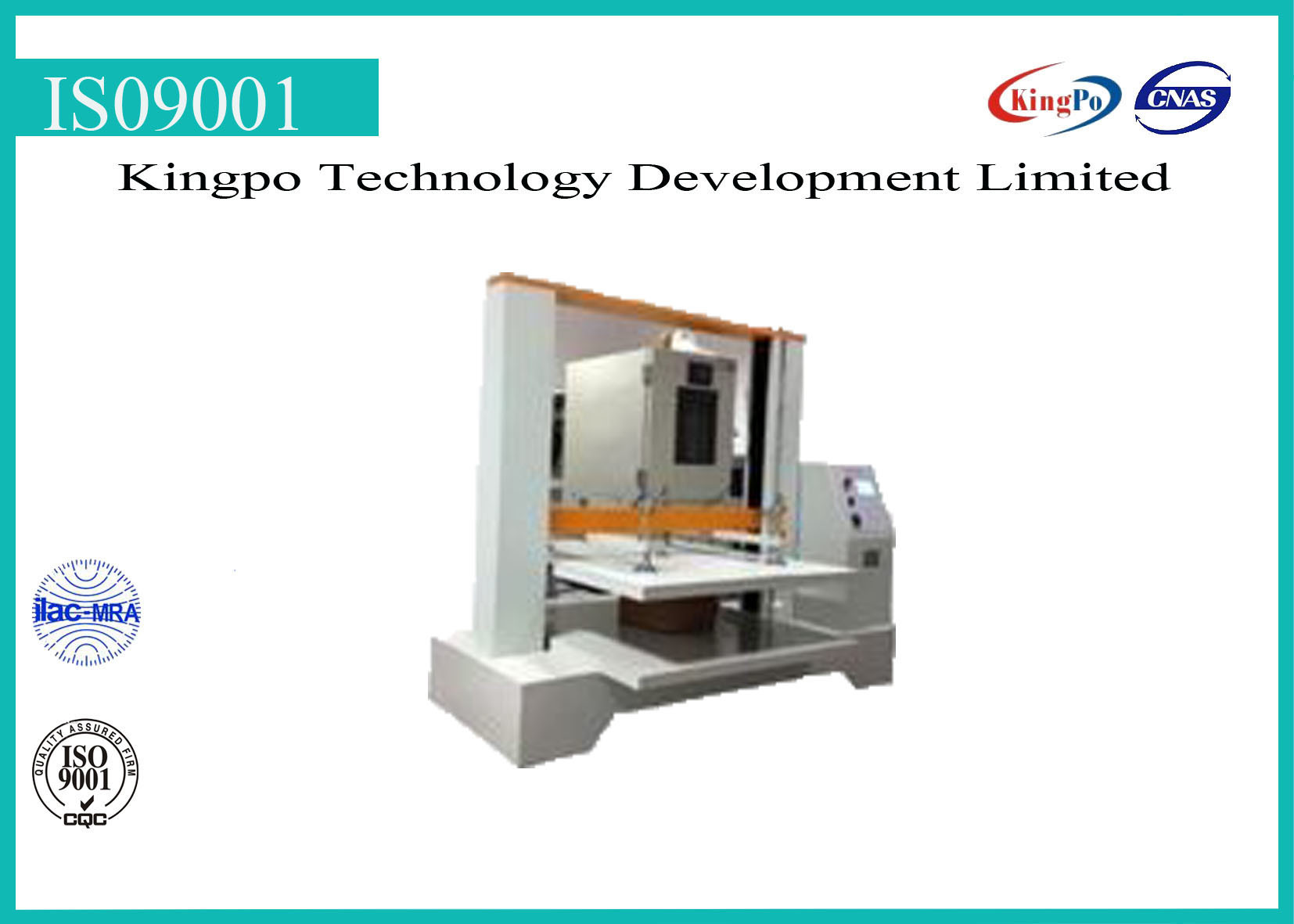

Container Compression Tester





Function Description



Container Compression Tester is the most direct test equipment for testing carton and other packing containers’ compression strength to determine stress tolerance and also can do continuous pressure and stacking test,whose result can be regarded as an important basis of stacking height of finished container and important reference for designing;It can execute national and international standards,which is an ideal test and research equipment for factory and enterprise,national defense and military industry,technical supervision department,commodity inspection authority,research institution,university and college.



Feature



1. structure is made of aluminum extrusion closure plate processed by advanced baking varnish;equipped with gapless twin screw and upright guide post with high accuracy and low resistance,which improve loading efficiency and its rigidity.

2. Control system adopts digital AC server to control AC motor with high response frequency,which ensure transmission system with high efficiency,stable transmission,low noise,speed accuracy within±0.2%.

3. Master control is digital display,which can settle all parameters and control operation status.

4. Stable and reliable properties,highly accurate measurement,powerful function and easy operation.

Design standard:TAPPI-T804,JIS-20212,GB4857.3.4,ASTM-D642



Permissible sample weight 1T
resolution 1/10000
precision ≤0.5%
Operation and control LCD screen
Power unit KG,LB,N
Test space 800 x 600 x 600mm
compression speed standard 10±3mm/min
Items Number,peak value,average,set pressure holding value
Basic Configuration AC inverter motor,spiral lead screw,Japanese photoelectric limit security protection device:over load/pressure protection
Exterior dimension (L x W x H)1000x1400x1650mm
thickness of test sheet 100mm
weight About 300kg
power

1ϕ ,220V/50HZ
