• Constant Walk In Environmental Chamber , Temperature And Humidity Chamber
Good price Constant Walk In Environmental Chamber , Temperature And Humidity Chamber online

Constant Walk In Environmental Chamber , Temperature And Humidity Chamber

Product Details:

Place of Origin: China
Brand Name: KingPo
Certification: Calibration Certificate

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: To be quoted
Packaging Details: safety carton pack or plywood box
Delivery Time: 35 working days
Payment Terms: T/T
Supply Ability: 3 sets per month
Contact Now

Detail Information

Temperature Range: -20℃、-40℃、-60℃、-70℃~-80℃(optional) Temperature Fluctuations Range: ±0.5℃
Temperature Conformity: ±5℃ Heating Rate: 1.2~2℃/min
Cooling Rate: 0.7~1℃/min Thermal Insulation Material: Rigid Polyurethane Foam
High Light:

ozone test chamber


temperature and humidity chamber

Product Description

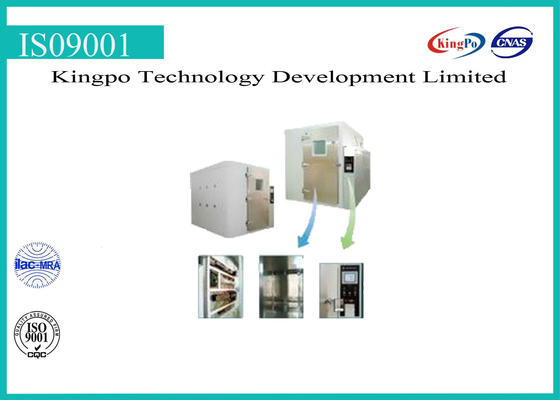

Walk-in Constant Temperature-humidity Test Chamber



Function Description

Constant Temperature and Humidity Test Chamber a.k.a. environmental tester is specialized in testing properties of various kinds of material’s heat resistance,cold resistance,dry resistance and humidity resistance,

which is applicable to electron,electrical appliance,meter,food,automobile,metal,chemis-try,construction material,aviation,medical product,etc,for their quality inspection.


Technical Parameter:


working chamber dimension 5,10,20,50,100 cubic metre
working chamber innage 2000 x 3000 x 2200MM
Exterior dimension 2500 x 3600 x 2500MM

measurement range


Temperature range -20℃,-40℃,-60℃,-70℃~-80℃(optional)
Temperature fluctuations range ±0.5℃
Temperature conformity ±5℃
heating rate 1.2~2℃/min
Cooling Rate 0.7~1℃/min international standard(linear temperature change rate as customer required)
Note:above indexes are measured in condition of atmospheric pressure and no load
structure and material Laboratory structure The unity consists of laboratory(with a single door made up of laminboard on the left),electric control cabinet(on the right) and refrigerator cabinet(at the rear).
outer wall material High end colored copper sheet
inner wall material SUS304 stainless steel,corrosion proof,easy to clean
thermal insulation material rigid polyurethane foam
Ventilation passage centrifugal fan;tuyere can debug air volume.
door Single door;double layer and high low temperature resistant stainless steel sheet and silicon rubber with double seal;inner&outer wrench to avoid being locked inside(consider a double door for comparatively bigger volume)
Observation window Size:260 x 380mm;electroplating film damp-proof and insulating observation window;11w Philips fluorescent lamp
Programmable controller Korean Samwontech TIME880 colorful touch screen

Refrigeration and

dehumidification system

German BITZER Hermetic compressor
Ventilation passage system Material:SUS304first class mirror panel blow cycle:hot wind positive loop system
Heating and humidification system

Heating:nickel-chrome heating wire

Humidification: nickel-chrome humidification pipe

Power supply AC 380V 50HZ 6KW
