| MOQ: | 1 |
| Price: | To be quoted |
| Standard Packaging: | safety carton pack or plywood box |
| Delivery Period: | 35 working days |
| Payment Method: | T/T |
| Supply Capacity: | 3 sets per month |

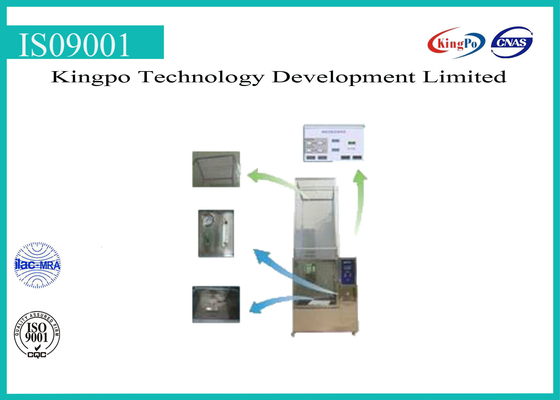

Water Spray Tester-IP56
Function Description
The chamber is applicable to check whether the device and components are ensured good performance when electrical product and its outer case are sealed in a raining environment,which is of scientific design and vividly simulate various environment like torrential rain and fierce water spray.Comprehensive stepping control system and stepping technique make 360°rotation of rainfall sample rack and rotary table to simulate a fiercely raining environment from all aspects.
| type | KP-IP56-500 | KP-IP56-1000 | |
| Spray pore diameter | IP5 spray hole￠6.5MM ,IP2 spray hole￠12.5MM | ||
| Distance between spray pore and sample | 2500-3000mm | ||
| Turntable Diameter and speed | ￠300, ￠500 3r±1/Min | ||
| Spray flow | IP5-12.5L/Min | IP6-12.5L/Min | |
| Spray pressure | 80-150KPA | 80-150KPA | |
| Test time | 0～999h 59min | 0～999h 59min | |
| interior dimension | D800 X W800 X H2700MM | D1000 X W1000 X H2700MM | |
| Exterior dimension | D1000 X W1300 X H3500mm | D1200 X W1500 X H3600mm | |
| Interior material | SUS304# stainless steel frosting sheet | SUS304#stainless steel frosting sheet | |
| Exterior material | SUS202# stainless steel/ cold rolled sheet with plastic spray | SUS202# stainless steel/ cold rolled sheet with plastic spray | |
| Water source and energy | purified/distilled water 300L/day | ||
| controller | Independent R&D PLC touch screen controller | Independent R&D PLC touch screen controller | |
| spray system | One IP5 spray nozzle,one IP6 spray nozzle | ||
| Spray angle | perpendicular to sample | ||
| Power and voltage | 3KW 380V 3Phase | ||
|
|
| MOQ: | 1 |
| Price: | To be quoted |
| Standard Packaging: | safety carton pack or plywood box |
| Delivery Period: | 35 working days |
| Payment Method: | T/T |
| Supply Capacity: | 3 sets per month |
Water Spray Tester-IP56
Function Description
The chamber is applicable to check whether the device and components are ensured good performance when electrical product and its outer case are sealed in a raining environment,which is of scientific design and vividly simulate various environment like torrential rain and fierce water spray.Comprehensive stepping control system and stepping technique make 360°rotation of rainfall sample rack and rotary table to simulate a fiercely raining environment from all aspects.
| type | KP-IP56-500 | KP-IP56-1000 | |
| Spray pore diameter | IP5 spray hole￠6.5MM ,IP2 spray hole￠12.5MM | ||
| Distance between spray pore and sample | 2500-3000mm | ||
| Turntable Diameter and speed | ￠300, ￠500 3r±1/Min | ||
| Spray flow | IP5-12.5L/Min | IP6-12.5L/Min | |
| Spray pressure | 80-150KPA | 80-150KPA | |
| Test time | 0～999h 59min | 0～999h 59min | |
| interior dimension | D800 X W800 X H2700MM | D1000 X W1000 X H2700MM | |
| Exterior dimension | D1000 X W1300 X H3500mm | D1200 X W1500 X H3600mm | |
| Interior material | SUS304# stainless steel frosting sheet | SUS304#stainless steel frosting sheet | |
| Exterior material | SUS202# stainless steel/ cold rolled sheet with plastic spray | SUS202# stainless steel/ cold rolled sheet with plastic spray | |
| Water source and energy | purified/distilled water 300L/day | ||
| controller | Independent R&D PLC touch screen controller | Independent R&D PLC touch screen controller | |
| spray system | One IP5 spray nozzle,one IP6 spray nozzle | ||
| Spray angle | perpendicular to sample | ||
| Power and voltage | 3KW 380V 3Phase | ||
